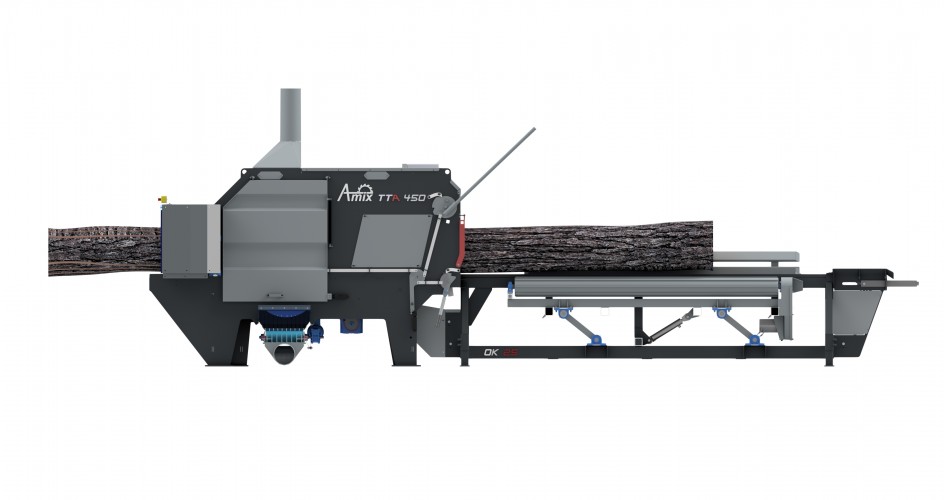

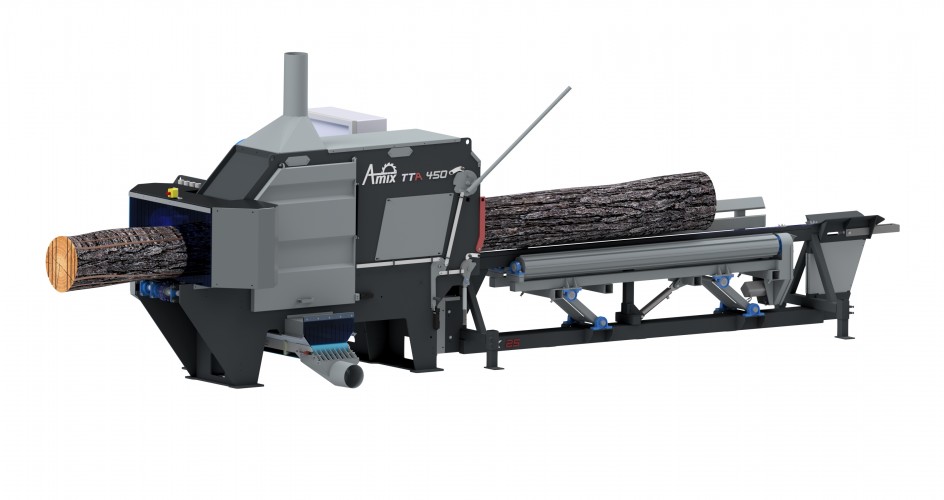

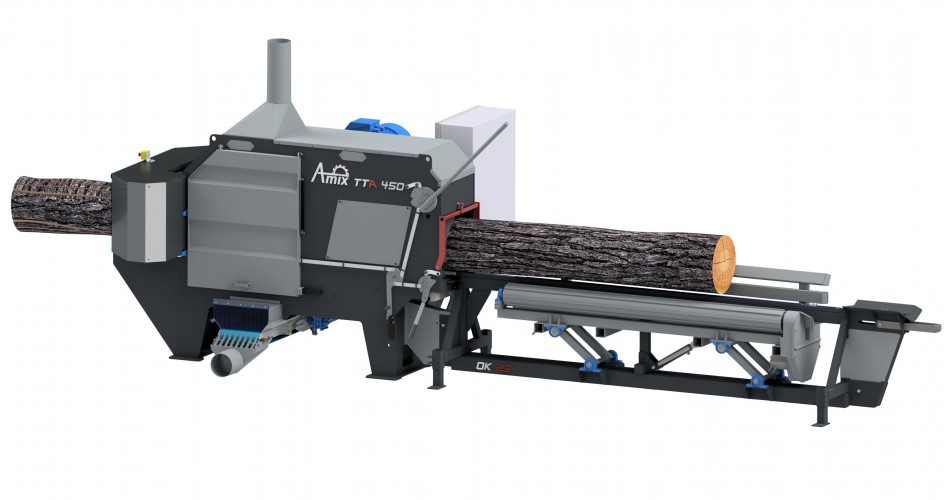

TTA-450 double-shaft circular sawmill
.jpg?ts=3308836070)
.jpg?ts=3308836070)
.jpg?ts=3308836070)
Product description
It is used for processing (cutting) medium-sized wood with a diameter of max. 460mm. The machine's high efficiency and its technical solutions allow you to cut two widths of a prism without the need to sort wood. This allows a quick return on purchase costs. The machine is used in sawmill plants dealing with wood processing and production of pallets.
Technical data:
Bottom shaft drive motor | 30 kW | 37kW | 45kW |
Upper shaft drive motor | 22kW | 30kW | 37kW |
| Feed motor | 1.5 kW |
Maximum number of saws on shafts | 6szt. |
Maximum cutting diameter | 450 mm |
Minimum cutting diameter | 120mm |
Length of the processed prism | 1200-2500mm |
Saw blade diameter | 630mm |
Feed rate | 0-10 m/min |
Overall dimensions of the machine:
| Machine length | 3036 mm |
| Machine length with feeder | 7200 mm |
| Machine width | 1825 mm |
| Machine height | 1960 mm |
| The capacity of the machine depends on the diameter of the wood being processed is | 6-12m3/hour |
