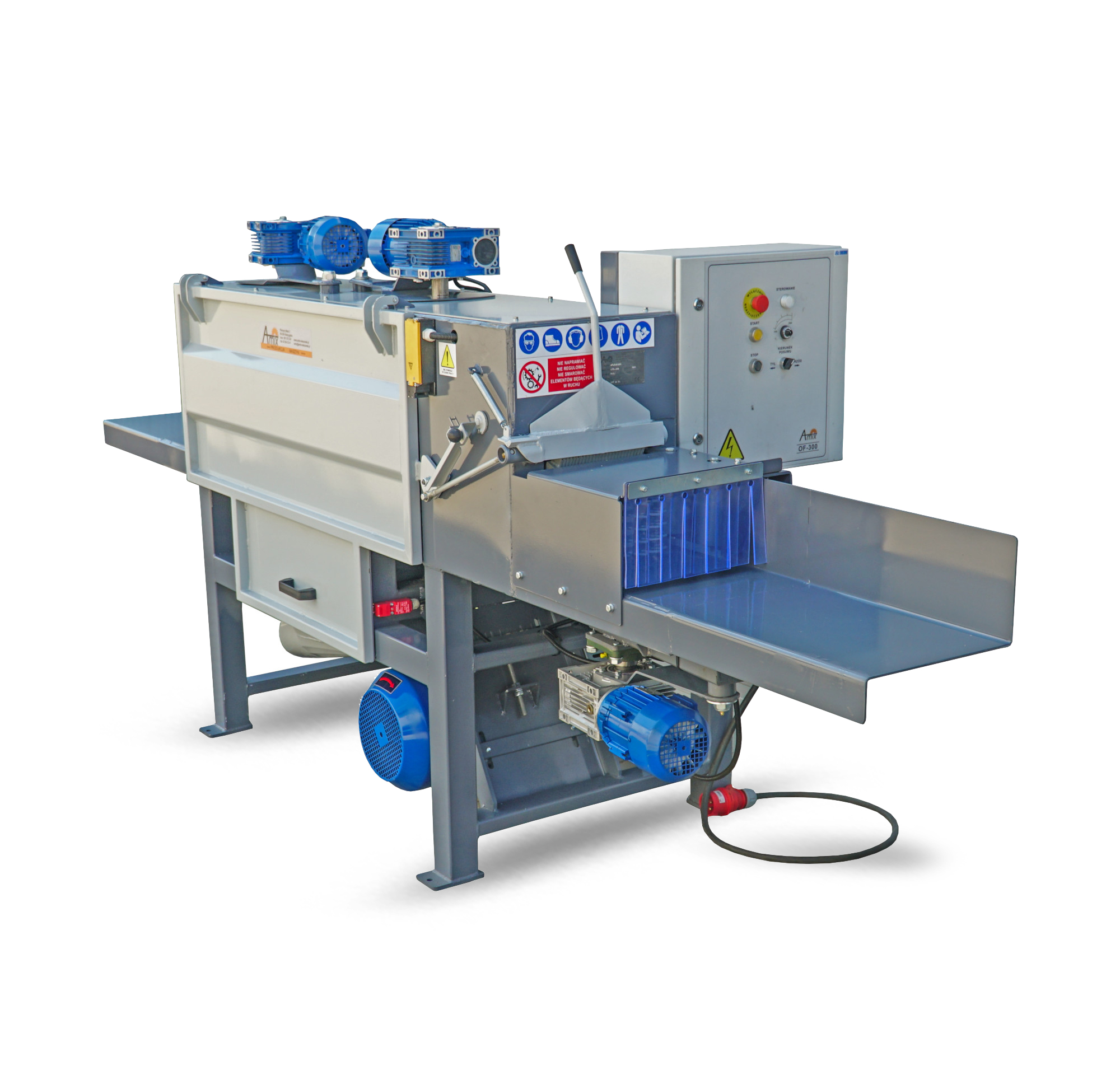

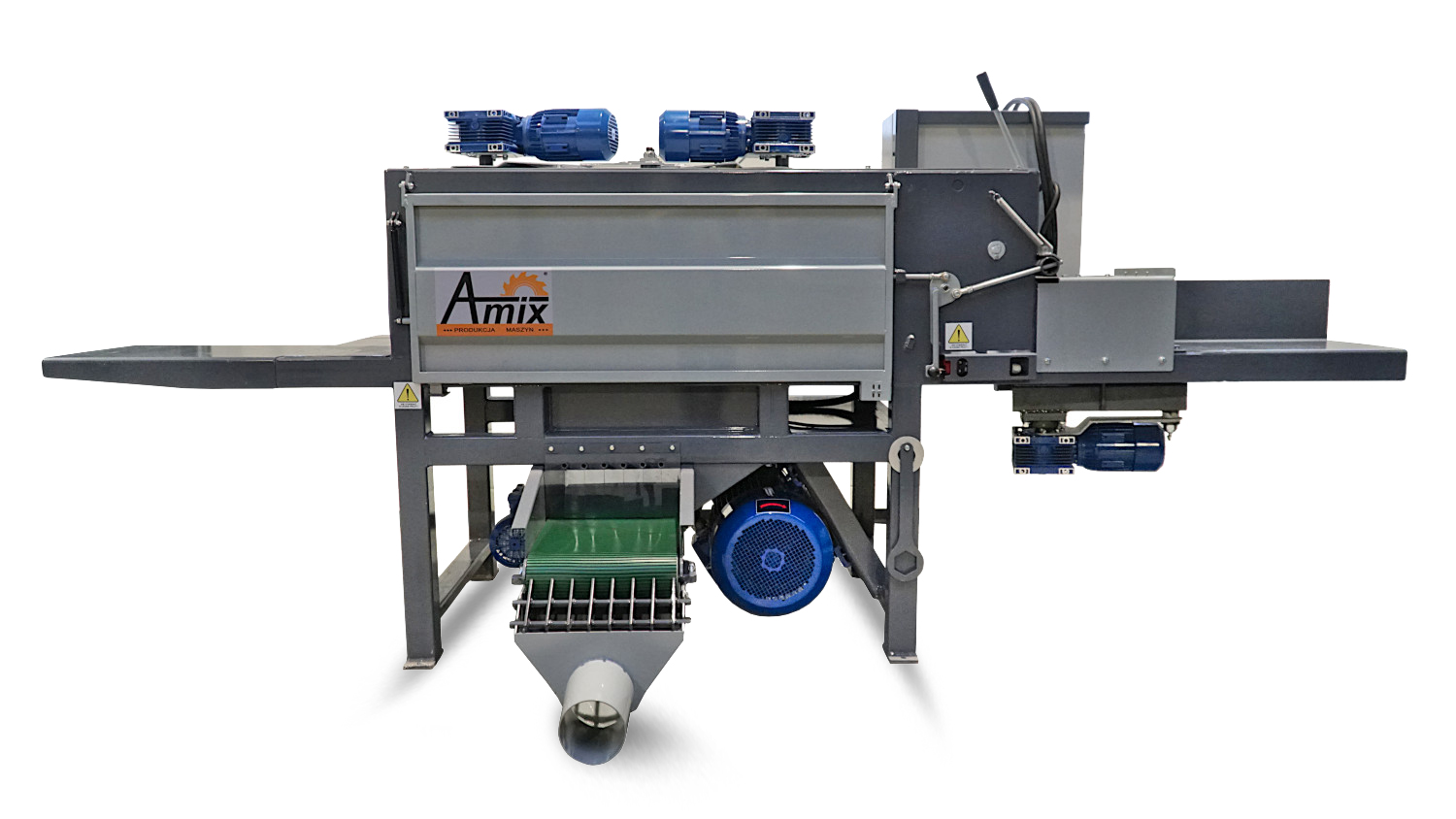

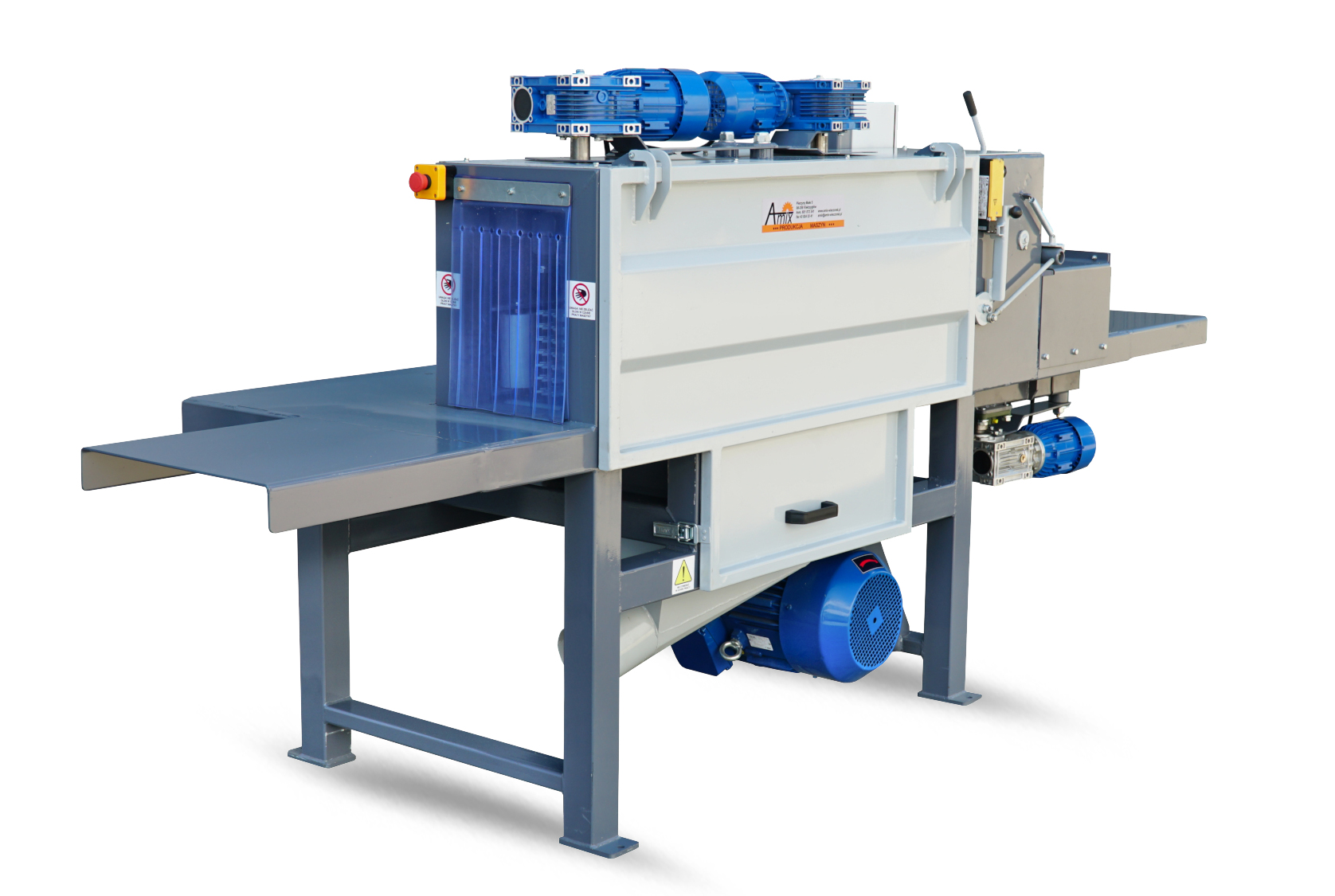

Slab recovery machine OFD-300
Product description
OFD-300 is a circular saw designed for longitudinal cutting of three-sided off-sides. The machine works with the OF-300, which enables maximum use of the processed material. OFD-300 is widely used in many sawmill plants, for example in the production of a pallet board.
Characteristic quantities:
weight | 920 kg |
height | 1580 mm |
width | 1040 mm |
lenght | 3014 mm |
Technical parameters of the machine :
circular saw (quantity) | 2-4 |
diameter of the saw | ø = 450 mm |
feed speed | 0-12 m/min |
the minimum thickness of the board obtained | 17 mm |
maximum thickness of the workpiece | 200 mm |
maximum height of the material to be processed | 150 mm |
Electric engine:
a circular saw motor | 18,5 kW or higher |
a drive motor | 3x0,75 kW |
Optional equipment:
- roll feeder (1.5m | 2m | 2.5m)
- horizontal sawdust conveyor belt
- oblique sawdust conveyor belt
