PT-85P

Product description

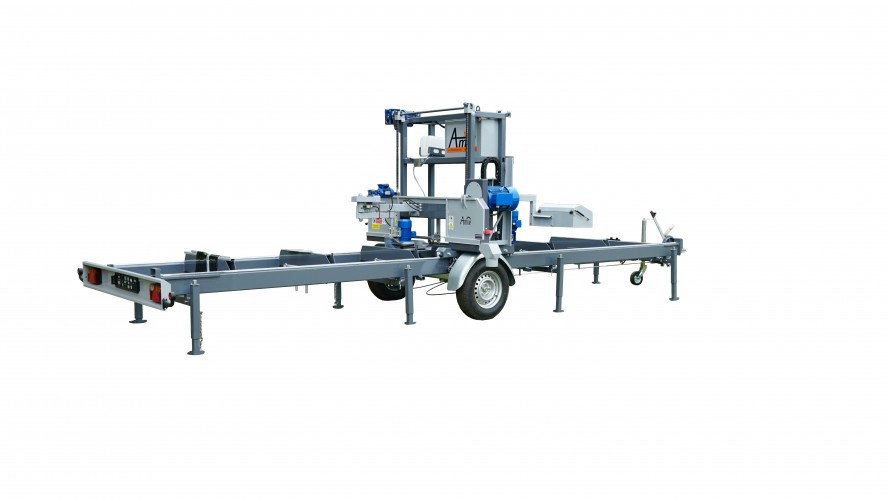

Band saw PT-85P (mobile) is used for processing (cutting) logs into planks, trusses, battens, beams and other elements of woodworking. The mobile saw makes it possible to process wood in any location on the premises or directly at the customer's place of business.



Characteristic quantities:

max. log diameter

850 mm

max. cutting length

4500 mm

main motor power

5.5 kW | 7,5 kW | 11 kW
supply voltage   3x400V



Measurements of the cutting saw:

saw length

4400mm (198 zębów)

cutting saw width

35 - 40 mm

saw pitch

22.2 mm

thickness of the saw

0.9 - 1.1 mm

diameter of the main pulley

485 mm

feedforward control

płynna

saw guide roller

przesuwana elektrycznie

horizontal clearance of the cutting head

800 mm

vertical clearance of the cutting head

290 mm



Machine equipment:

manual log pressure      2szt.

thrust buffers

4szt.




Machine measurements:

Length8120 mm
Width2270 mm
Height2310 mm
Weight1210 kg

Machine output (finished raw material)

1 - 2m³ na godz.
