Produkt

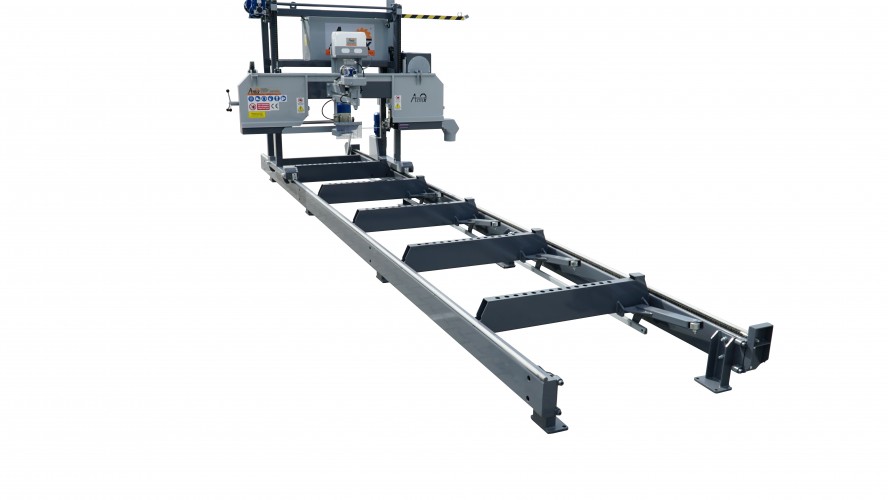

PT-85E

Product description

Tape saw type PT-85E is used from processing (cutting) of wooden logs into boards, trusses, battens, beams and other elements of woodwork.



Characteristic quantities:



Diameter of the raw material to be processed

850mm

Main motor power

5.5kW

Supply voltage

3x400V



Measurements of the cutting saw:

Saw length

4400mm (198 zębów)

Cutting saw width

35 - 40 mm

Saw pitch

22.2 mm

Thickness of the saw

0.9 - 1.1 mm

Diameter of the main pulley

485 mm

Feedforward control

płynna

Saw guide roller

przesuwana elektrycznie

Horizontal clearance of the cutterhead

800 mm

Vertical clearance of the cutterhead

290 mm



Machine equipment:

Manual log pressure

2szt.

Thrust buffers

4szt.



Machine measurements:

Length6150 mm
Width2340 mm
Height1895 mm
Weight846 kg

Machine output (finished raw material)

1 - 2m³ na godz.
