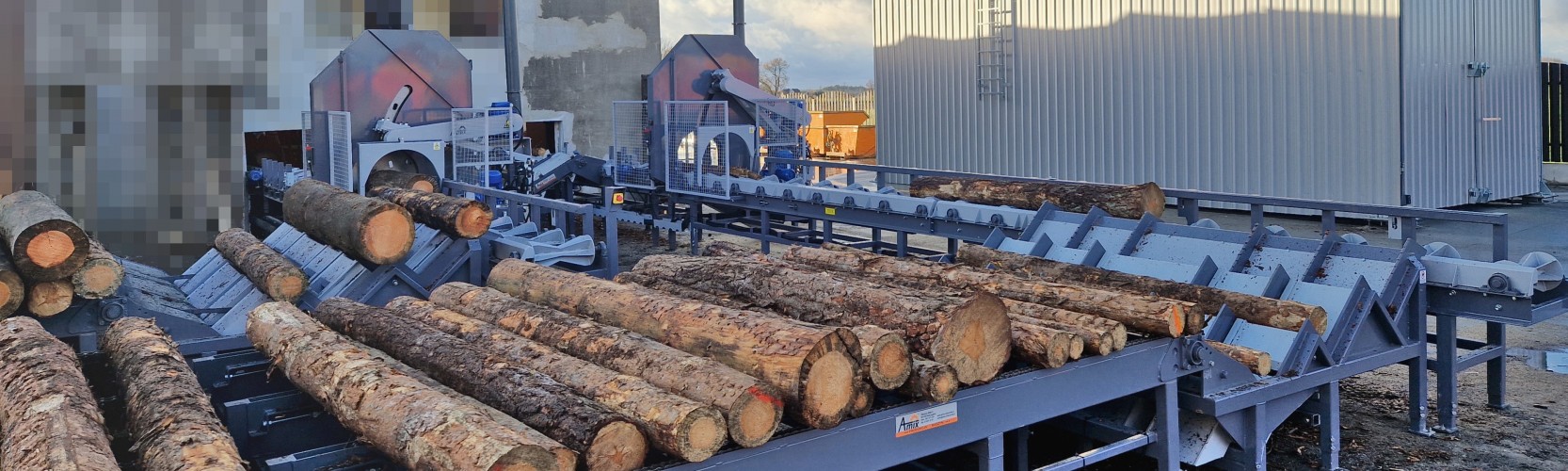

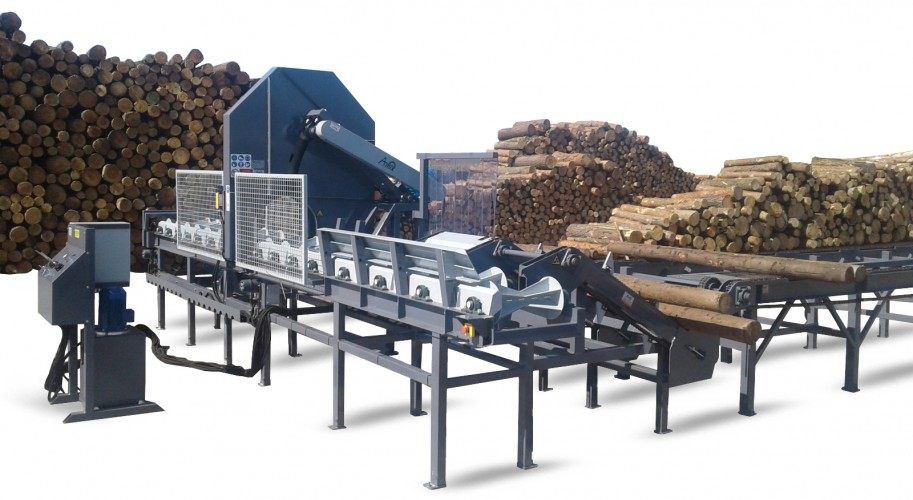

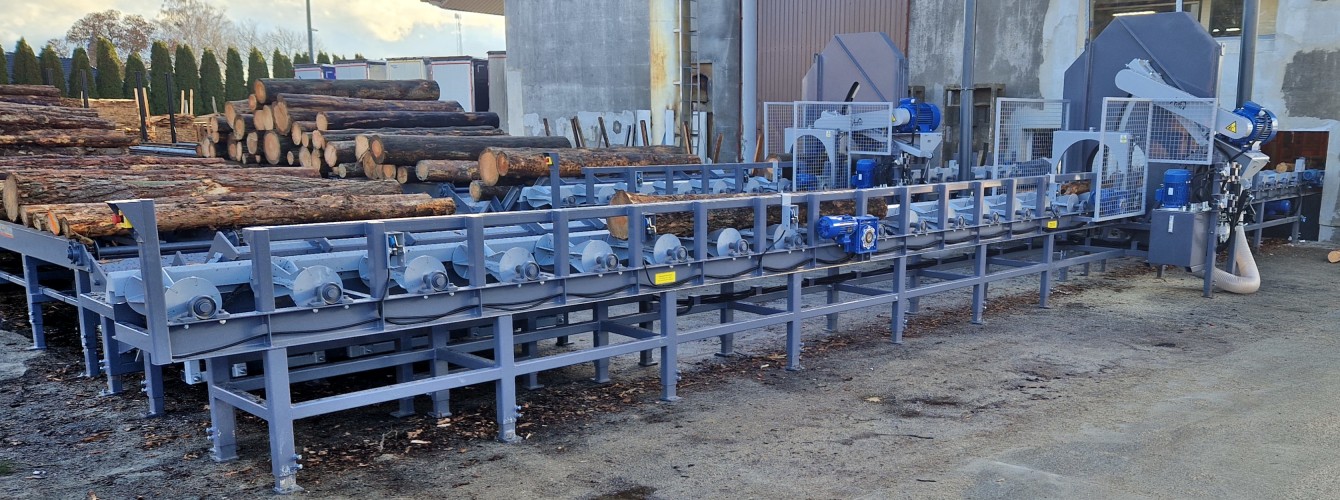

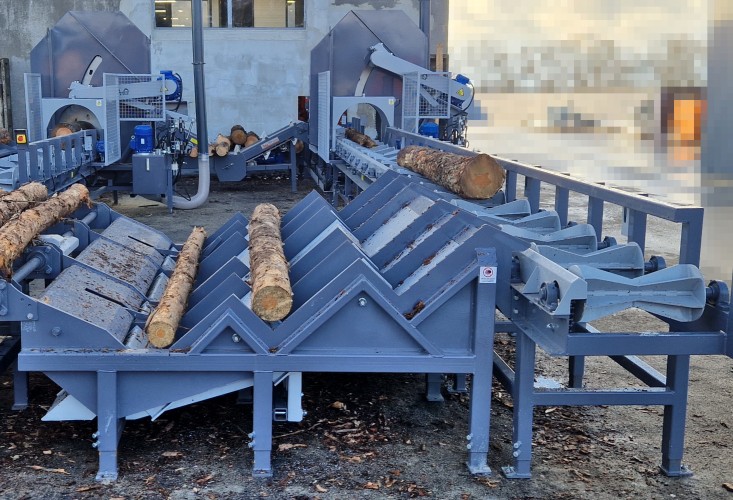

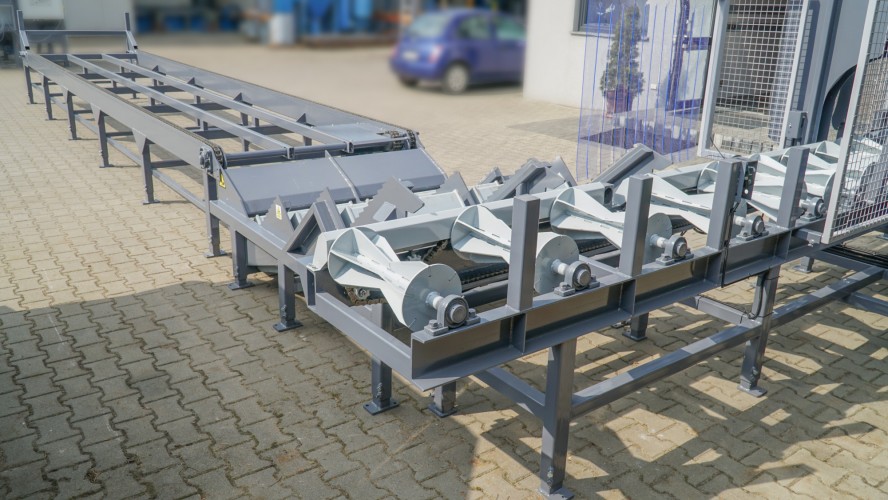

Log saw type PTP-2500
Product description
The PTP-2500 cutter is designed for cutting wood with 2.5-3 m in diameter to 40 or 48 cm for shorter lengths. The machine is intended primarily for manufacturers of wooden pallets.
Characteristic quantities:
| diameter of the processed raw material | 80-480 mm |
| range of length adjustment | 800-1200 mm |
| length of the log being machined | 2500-3000 mm |
| Main engine power | 11kW, 15kW, 18,5kW |
| mains voltage | 3x400V |
Dimensions of the saw blade:
| diameter of the saw | 1000 mm / 1200mm |
| regulation of the cutting feed | smooth |
Overall dimensions of the machine:
| length | 5100 mm |
| width | 2450 mm |
| height | 2600 mm |
| the height of the feed table | 850 mm |
| machine weight | 1250 kg |
| machine performance (finished raw material) | 10-15 m3 /hour. |
