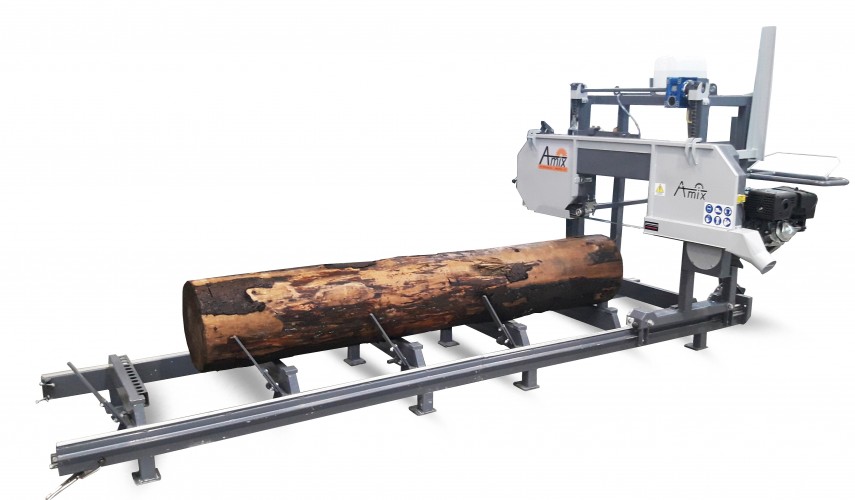

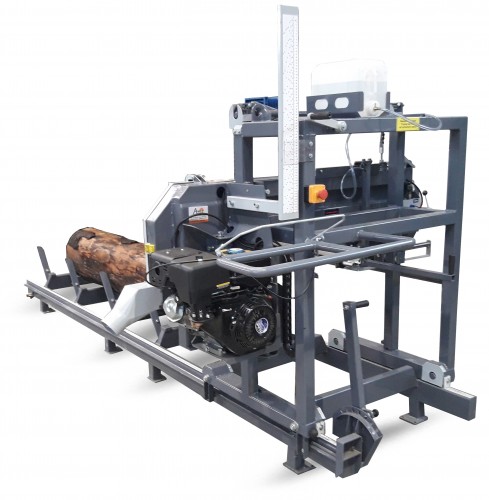

The PT-70S band saw
Product description
It is used for processing (cutting) wooden logs on boards, bolts, laths, squares and other elements of building carpentry. A 13Km combustion engine is used for the sawing machine.
Characteristic quantities:
| Max. log diameter | 700 mm |
| Max. cutting length | 4500 mm |
| Main engine power | 13Km ( 95Pb) |
Dimensions of the saw blade:
| The length of the saw | 4000 mm (180 teeth) |
| The width of the saw blade | 35÷40 mm |
| Pitch of the saw | 22.2 mm |
| Sawing thickness | from 0.9 to 1.1 mm |
| Diameter of the main pulley | 480 mm |
| Feed regulation | moved manually |
| Hand saw roll | moved manually |
| Horizontal clearance of cutting head | 700 mm |
| Vertical clearance of the cutting head | 290 mm |
Equipment of the machine:
| Pressure on logs | 2 pcs |
| Stop bumpers | 4 pcs |
Overall dimensions of the machine:
length 6000 mm width 2250 mm height 1750 mm machine weight 800 kg efficiency of the machine (finished raw material) 1-1,5 m3 per hour
