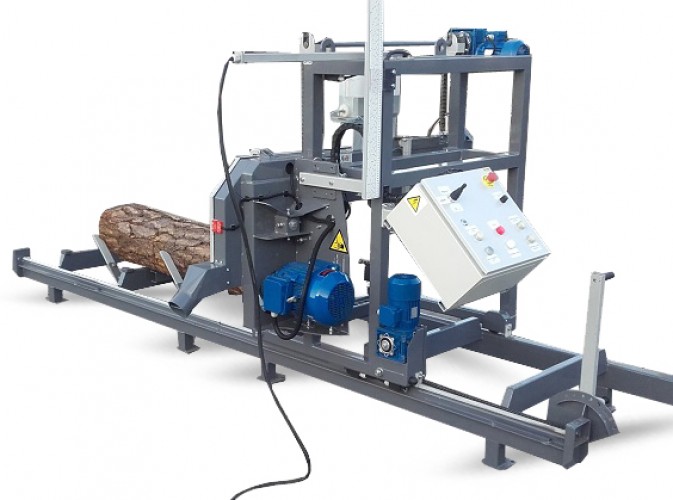

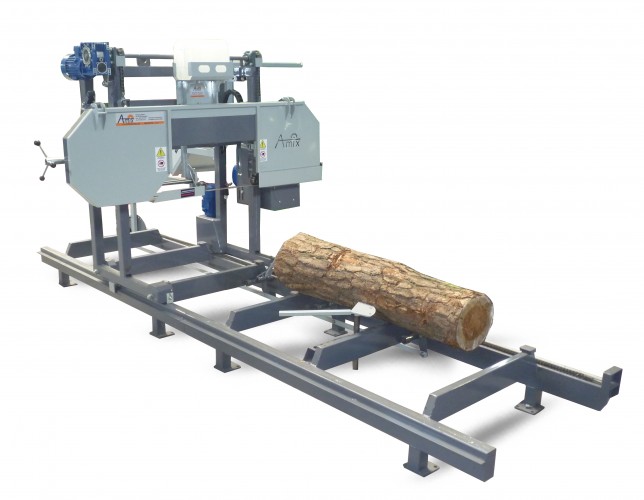

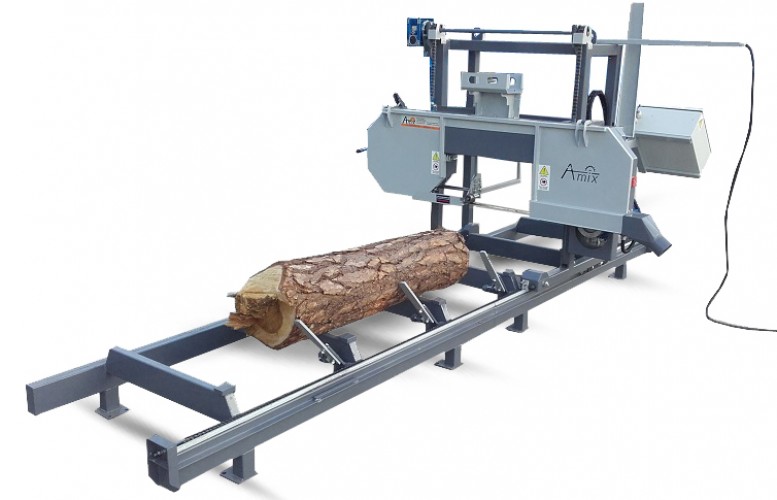

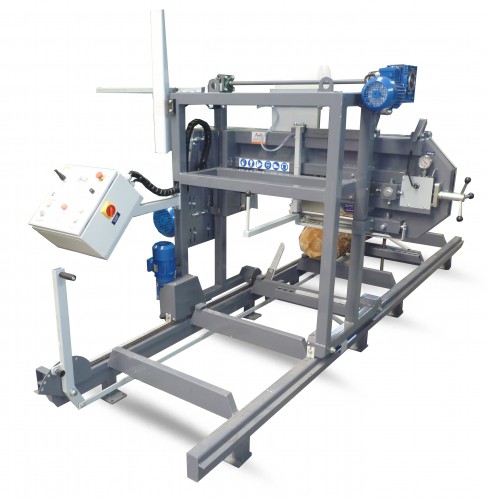

The PT-70 band saw
Product description
The PT-70 band saw is used for working (cutting) wooden logs on boards, bolts, patches, squares and other elements of building carpentry.
Characteristic quantities:
| max. log diameter | 700 mm |
| max. cutting length | 4500 mm |
| main engine power | 5,5 kW ( 7,5Kw option) |
| supply voltage | 3x400 V |
Dimensions of the machine:
| the length of the saw | 4000 mm (180 teeth) |
| the width of the saw blade | 35÷40 mm |
| pitch of the saw | 22.2 mm |
| saw thickness | from 0.9 to 1.1 mm |
| diameter of the main pulley | 480 mm |
| feed regulation | smooth |
| hand saw roll | moved manually |
| horizontal clearance of cutting head | 700 mm |
| vertical clearance of the cutting head | 290 mm |
Equipment of the machine:
| pressure on logs | 2 pcs |
| stop bumpers | 4 pcs |
Wymiary gabarytowe maszyny:
| length | 6000 mm |
| width | 2250 mm |
| height | 1750 mm |
| machine weight | 800 kg |
| efficiency of the machine (finished raw material) | 1-1,5 m3 per hour |
Additional equipment:
- debarking cutter (debarker)
- ISP010 cutting thickness controller
- extension of the 2m track
