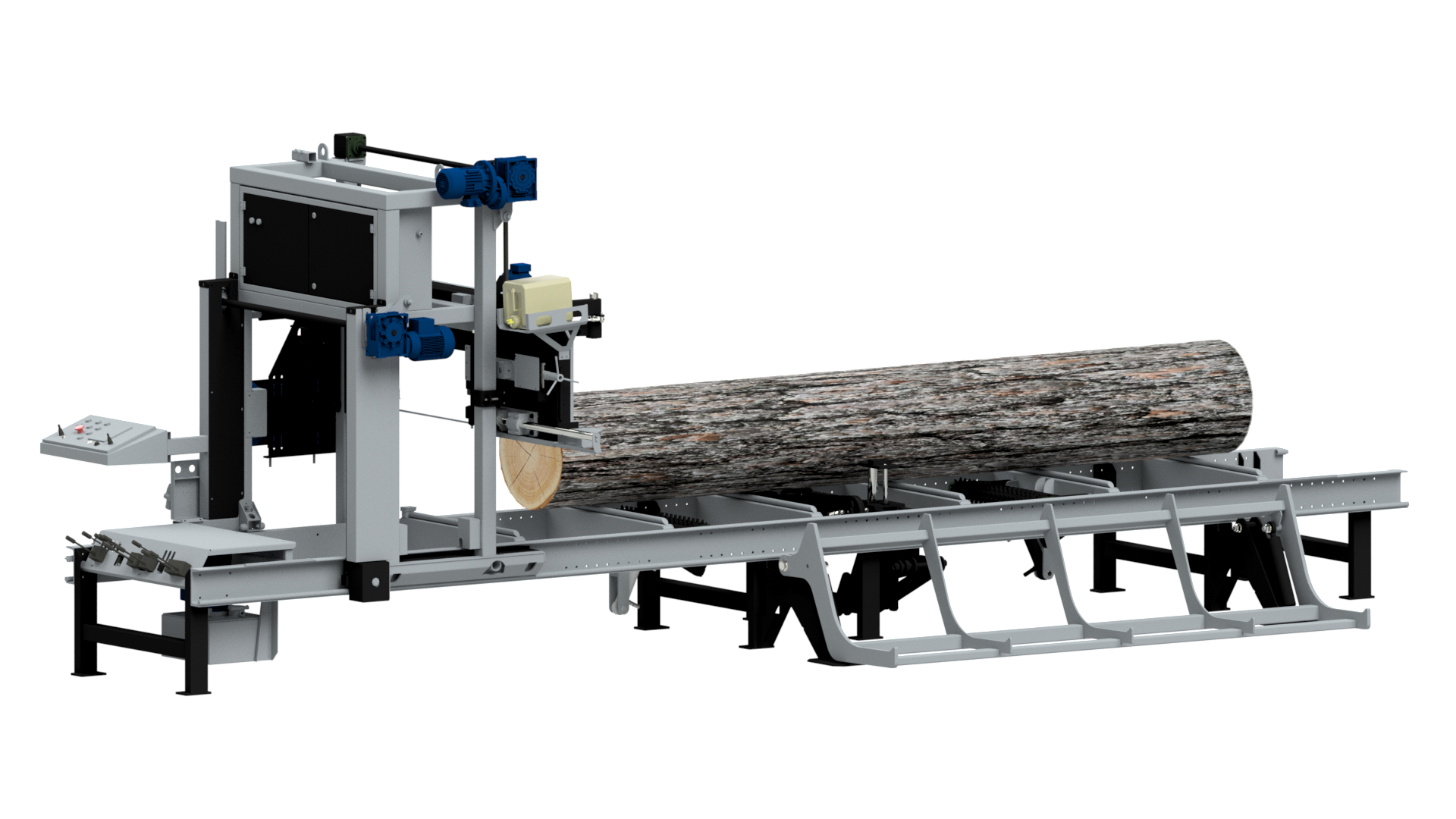

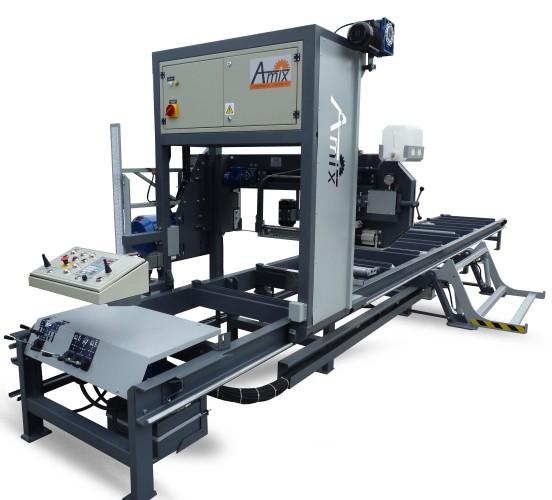

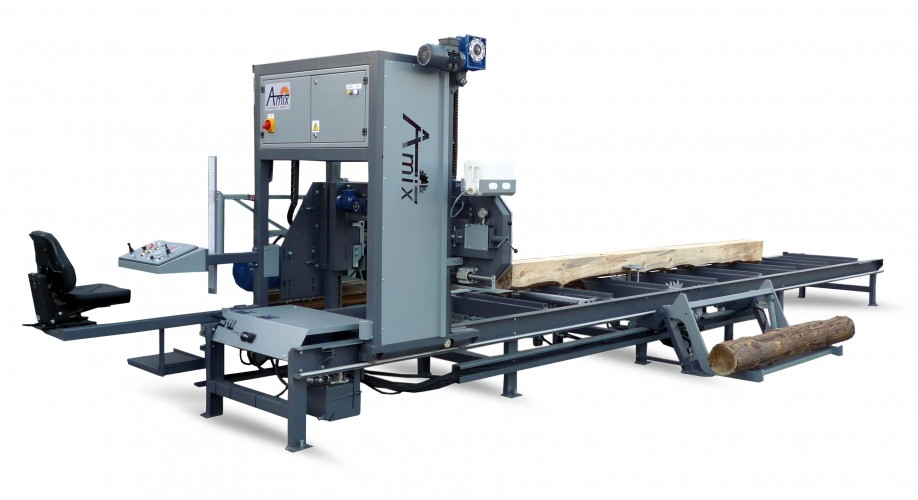

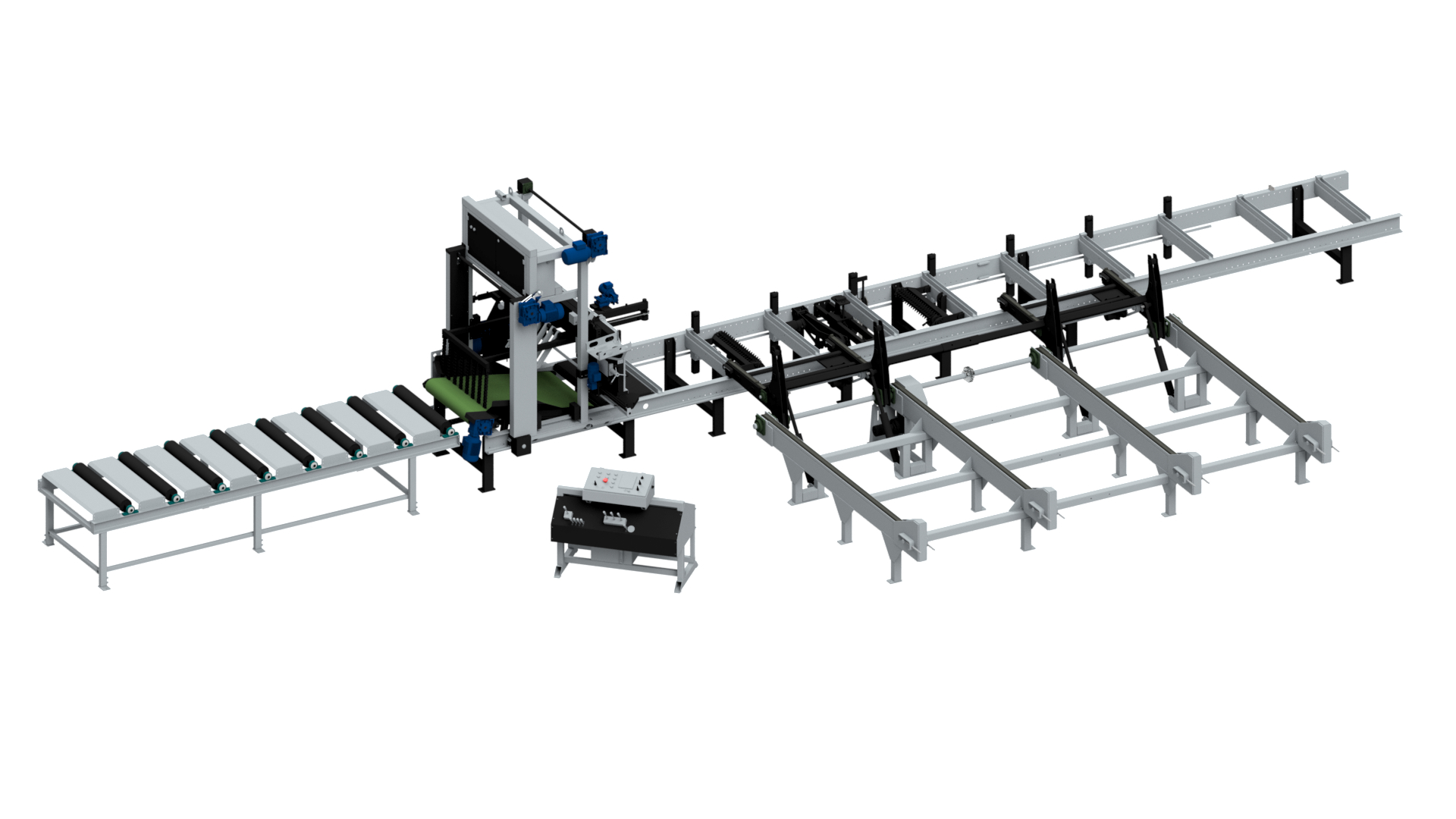

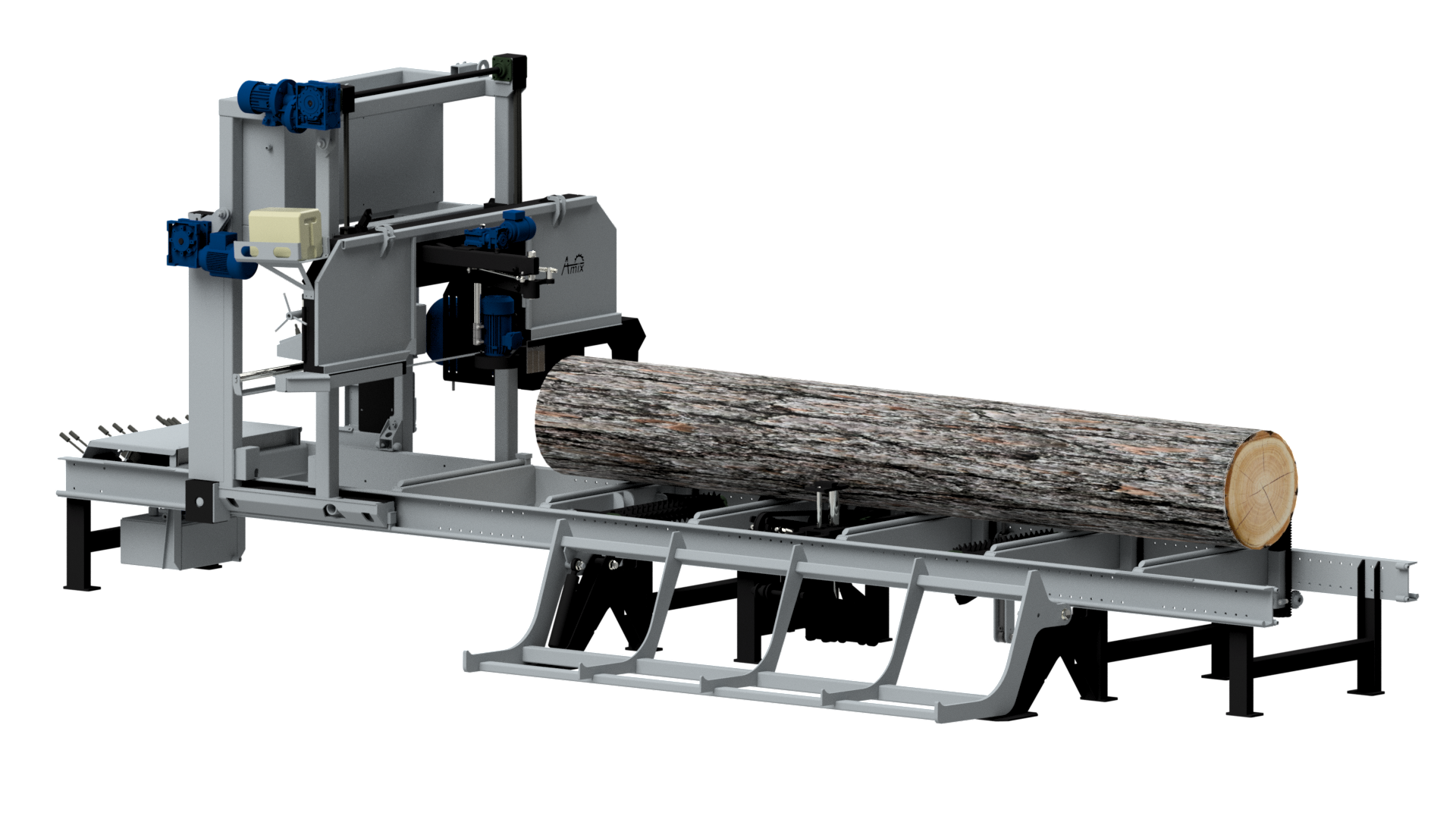

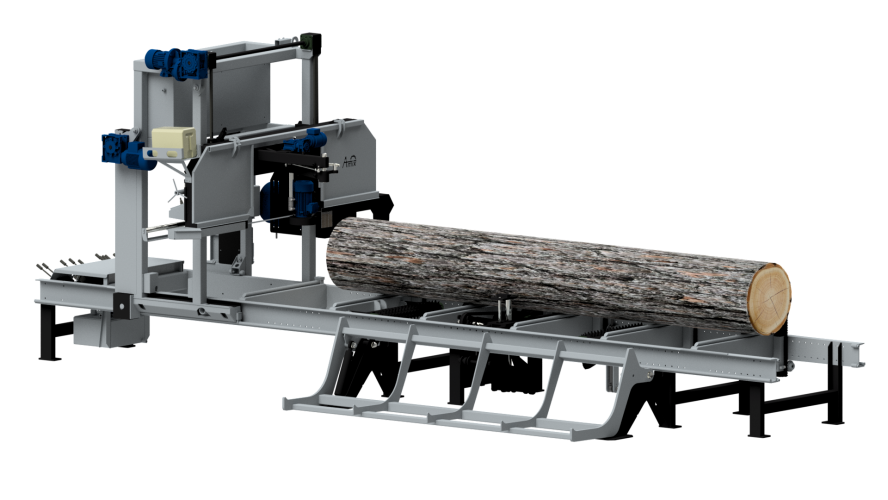

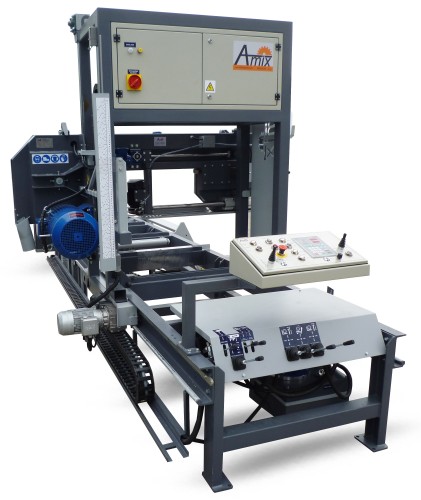

Bandsaw PT - 100
Product description

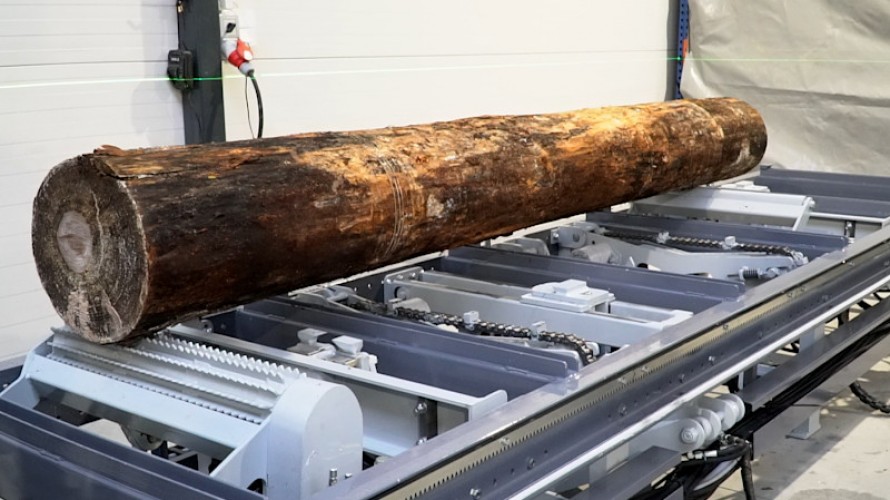

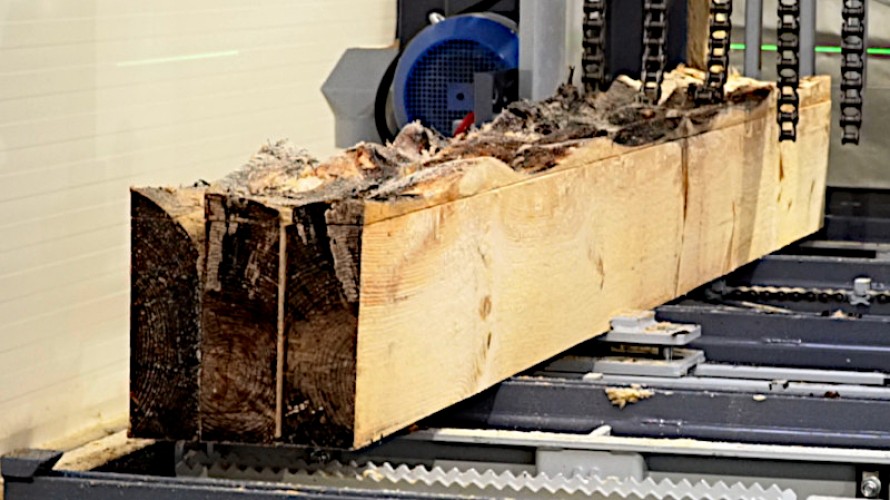

Mobile machine is used for machining (cutting) wooden logs on boards, trusses, patches, squares and other elements of building carpentry directly at the customer.
It is a universal machine that is used in a sawmill, woodworking and furniture industry which saves material.
Technical data:
| Max. diameter of logs | 1000 mm |
| Max. cutting length | 4500 mm |
| Main engine power | 11 kW, 15 kW, 18,5 kW |
| Supply voltage | 3x400 V |
Dimensions of the saw blade:
| Sawing length | 4995 mm (225 teeth) |
| The width of the saw blade | 30÷42 mm |
| Pitch of the saw | 22.2 mm |
| Saw thickness | 1.0-1.27 mm |
| Diameter of the main pulley | 600 mm |
| Feed regulation | smooth |
| Electrically operated saw blade | |
| Horizontal clearance of the cutting head | 900 mm |
| Vertical clearance of the cutting head | 370 mm |

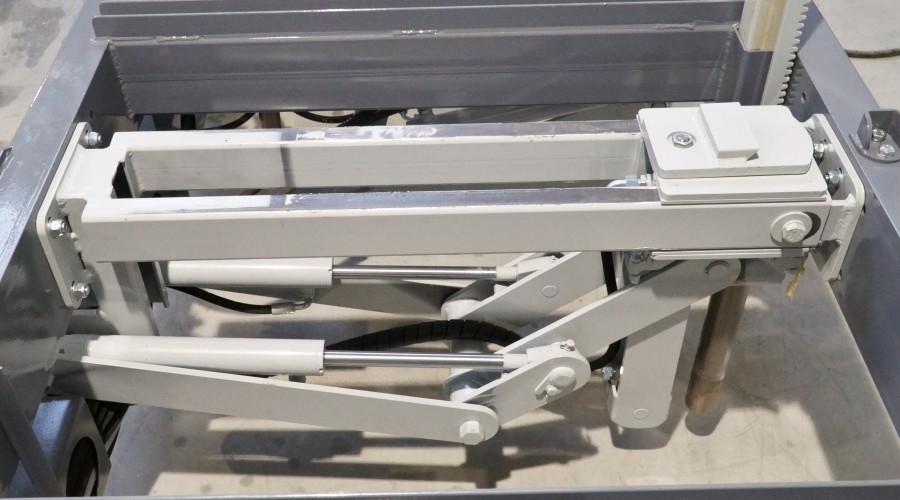

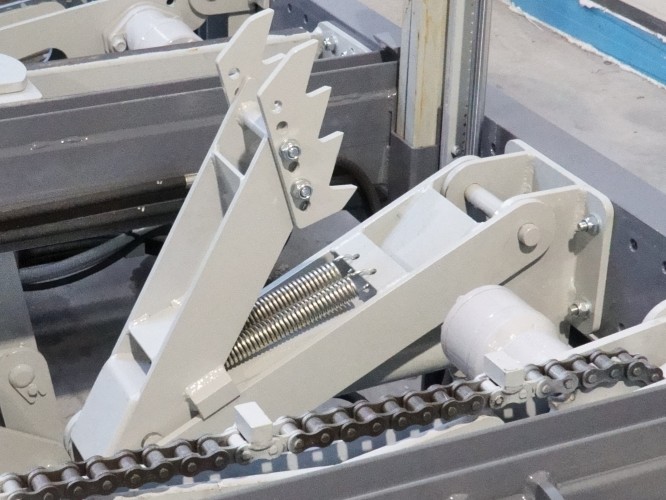

Hydraulic equipment of the machine:
| Pressure on logs | 1 pc |

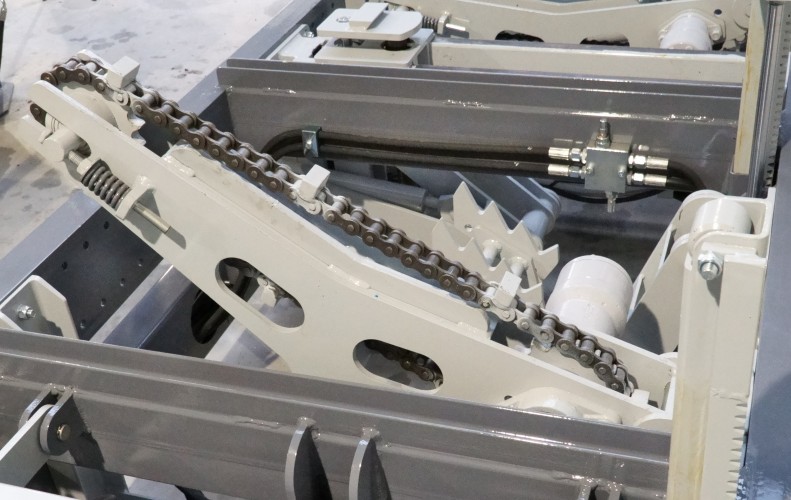

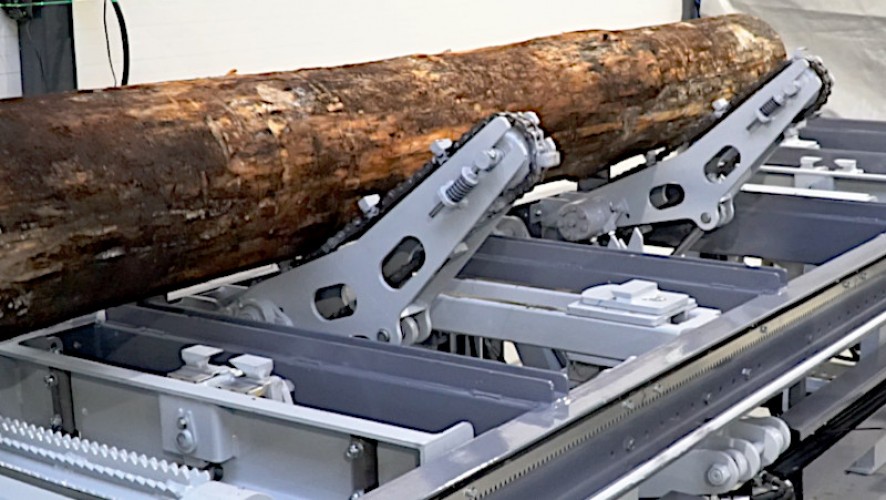

| Log rotator | 1 piece |
| Loading fork | 1 pc |
| Leveling roll | 2 pcs |
| Retractable stop bumpers | 4 pcs |
Overall dimensions of the machine: length 6000 mm width 2600 mm height 2560 mm machine weright 2000 kg machine performance (finished raw material) 1.5-3 m3 per hour
Additional equipment:
- debarking cutter (debarker)
- ISP010 cutting thickness controller
- extension of the track 3 m, 6 m
- two-way clip
- operator's seat

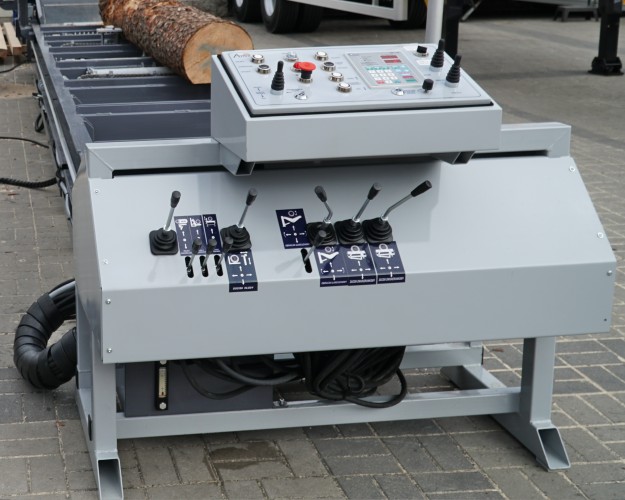

- desktop station
- additional hydraulic pressure

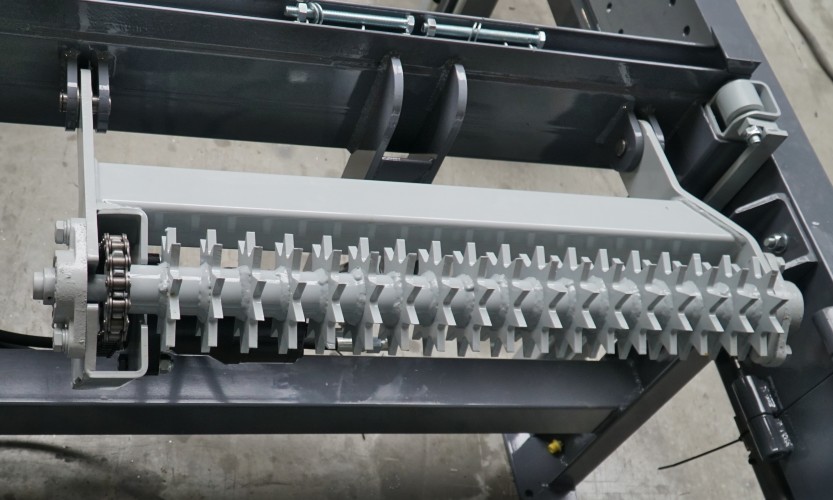

- additional toothed rotor
- chain rotary
- leveling roller with hydraulic drive
- leveling roll
- additional loading forks
