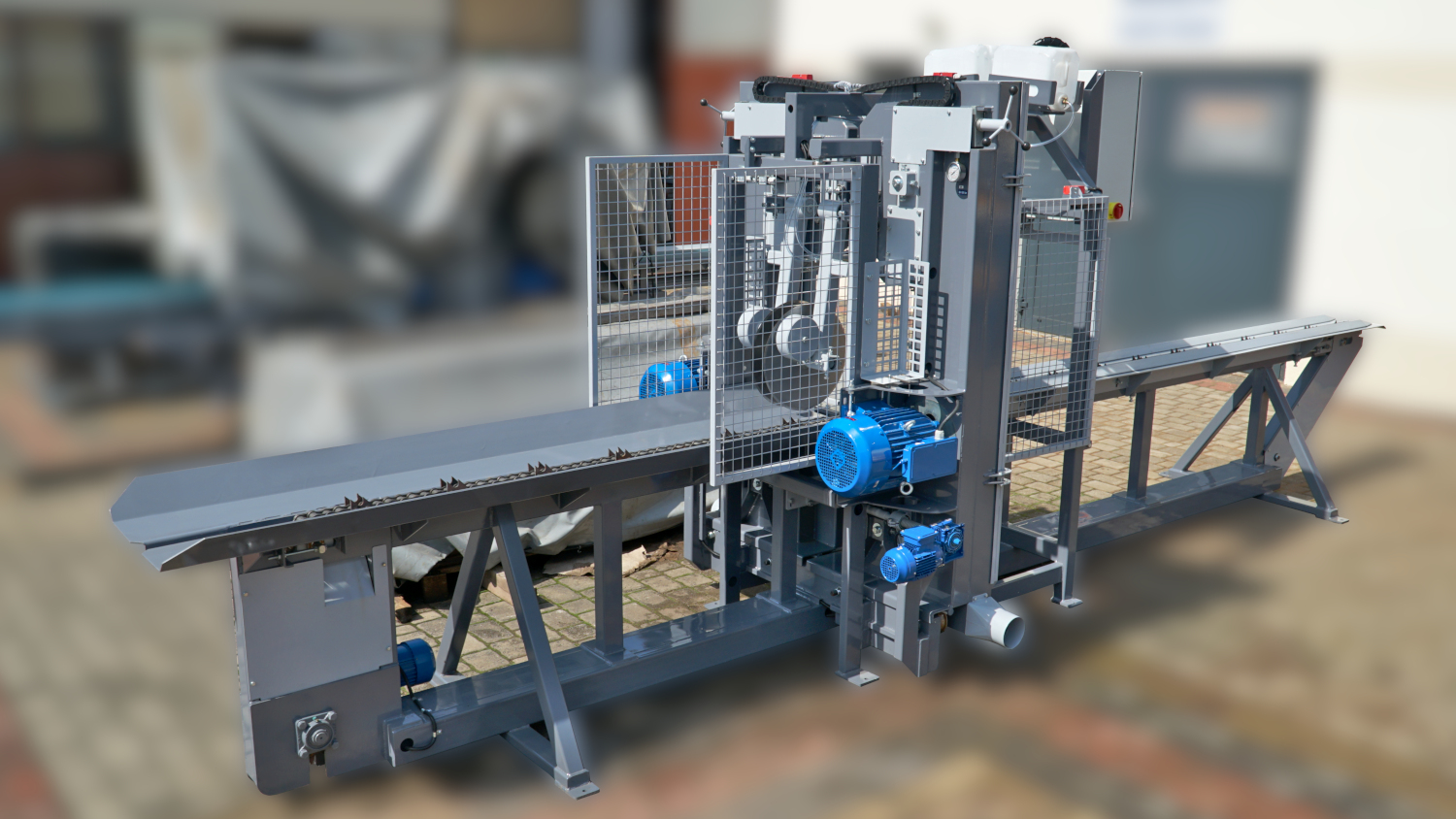

2-band saw PT-2P

Product description

This vertical 2 bandsaw type PT 2P is designed for processing paper , thin sawmill as well as stacked wood. It is widely used in plenty sawmill plants and the machine’s contruction allows for quick reimbursement of purchase costs and minimize the loss of the raw material.

Characteristic quantities:

diameter of the processed material100-530 mm
thickness of the log being obtained55÷250 mm
length of the processed log800-3000 mm
main engine power2x5.5 kW
supply voltage3x400 V

Dimensions of the saw blade:

saw blade length4400 mm
saw blade width35÷40 mm
pitch of the saw22.2 mm
saw thickness1.0-1.27 mm
diameter of the main pulley600 mm
feed regulationsmooth

Overall dimensions of the machine:

length4900 mm
width1600 mm
height1950 mm
the height of the feed table 8850 mm
machine weight1250 kg
capacity of the machine (finished raw material)2-4 m3

Additional equipment:

  • 7.5 kW power engine
  • loading feed ŁPK-120
