OFZ-150

Product description

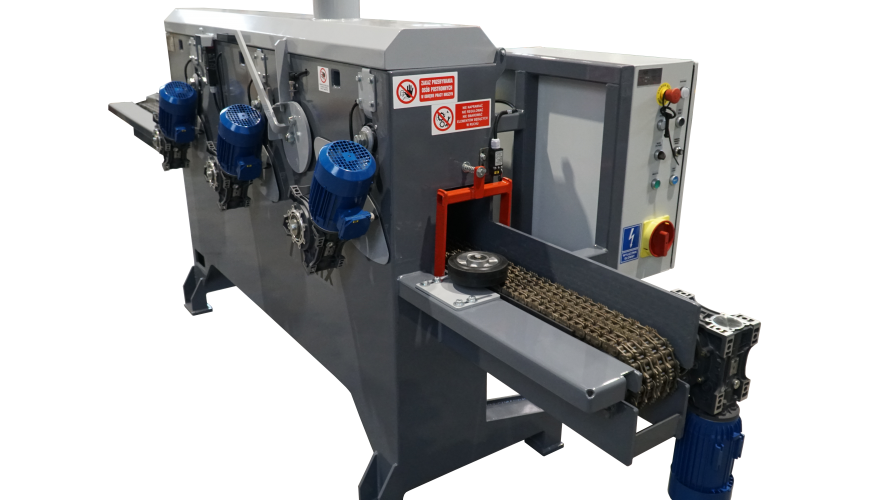

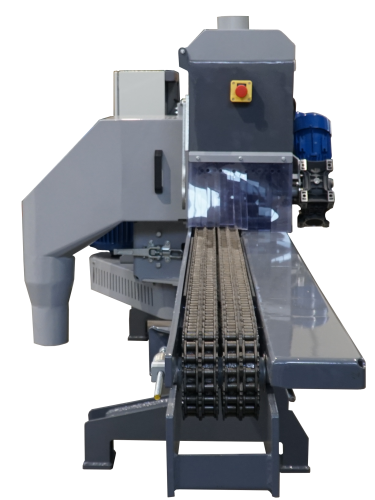

OFZ-150 is a saw machine designed for longitudinal cutting of three-sided exposed oleos into boards. The machine cooperates with the OF-300 facing machine, which allows maximum utilization of the processed raw material.

Overall dimensions:

Weight1432kg
Height1500mm
Width1217mm
Length4500mm



Technical parameters of the machine:

Circural saw2-4 szt.
Saw diameterØ = 350 | 450mm
Feed rate0-12m/min
MInimum thickness of the obtained board17mm
Maximum width of the processed material200mm
Maximum height of the processed material150mm



Electric motors:

Circurals saw engine18,5kW | 22kW | 30kW
Drive motors   1,5kW + 3x0,55kW
