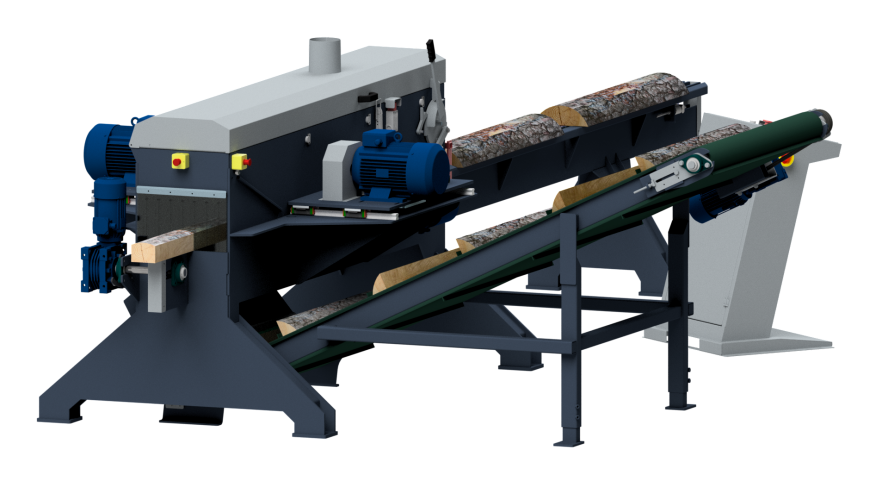

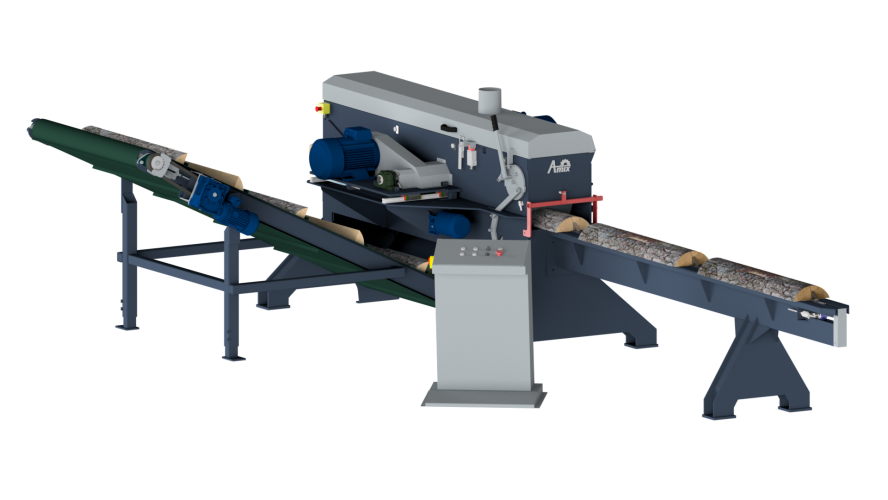

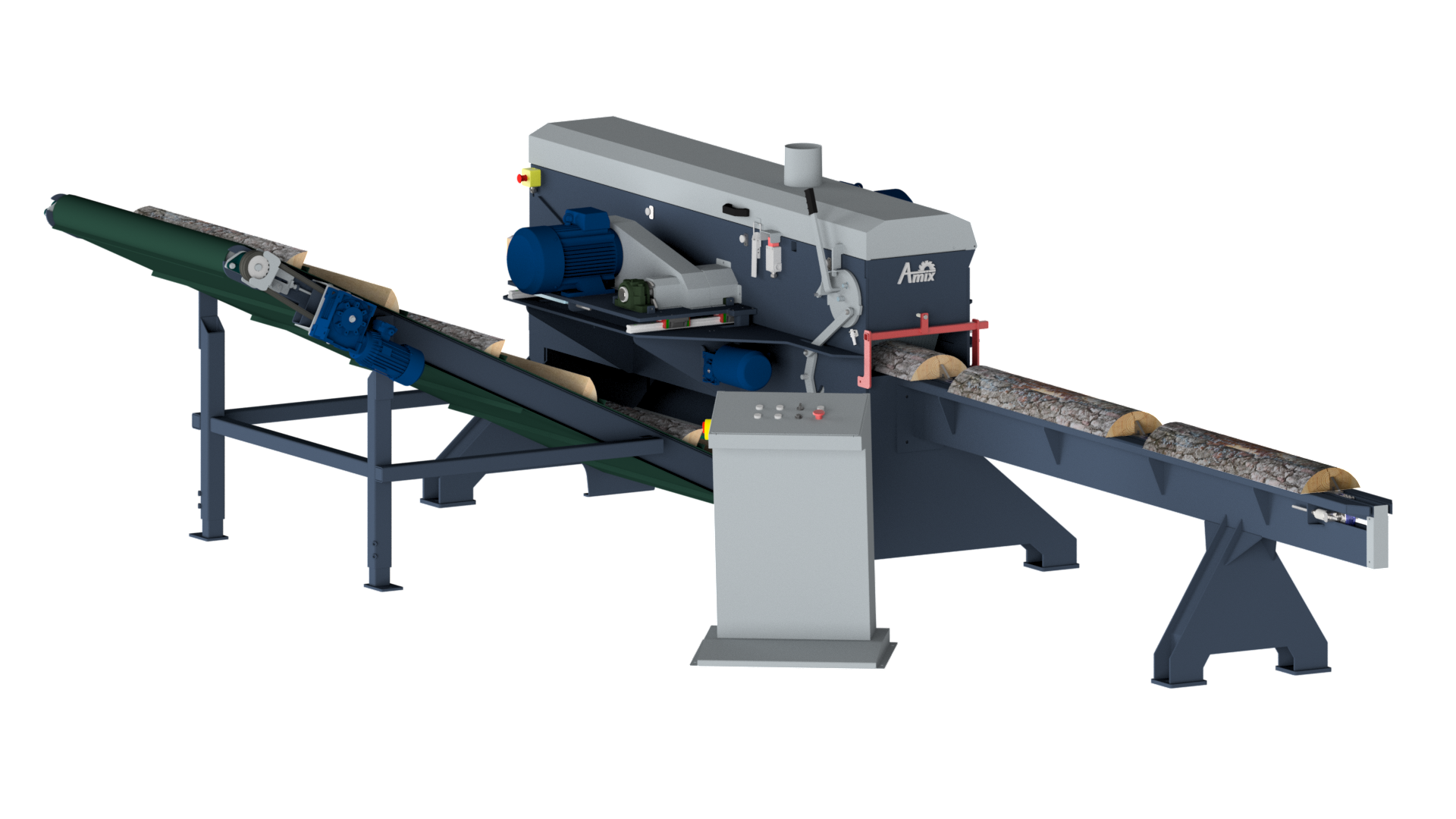

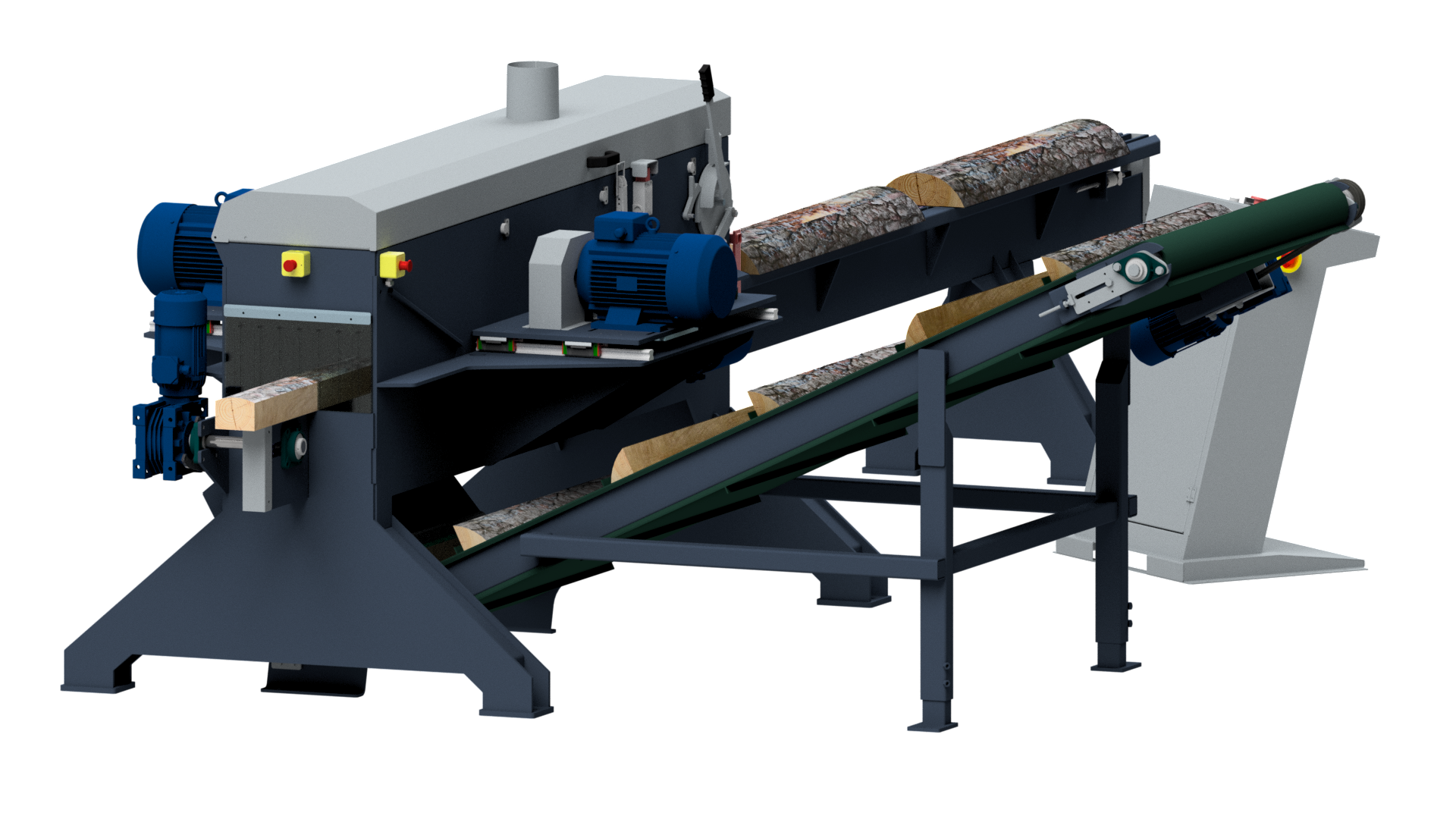

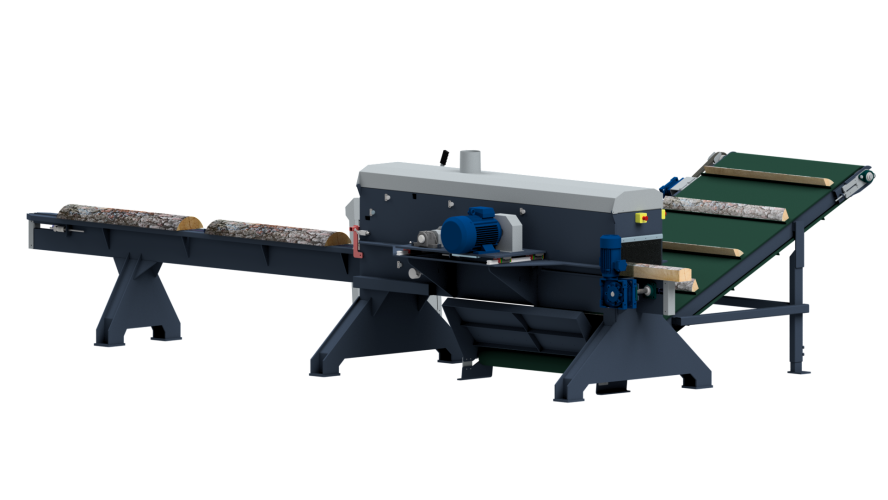

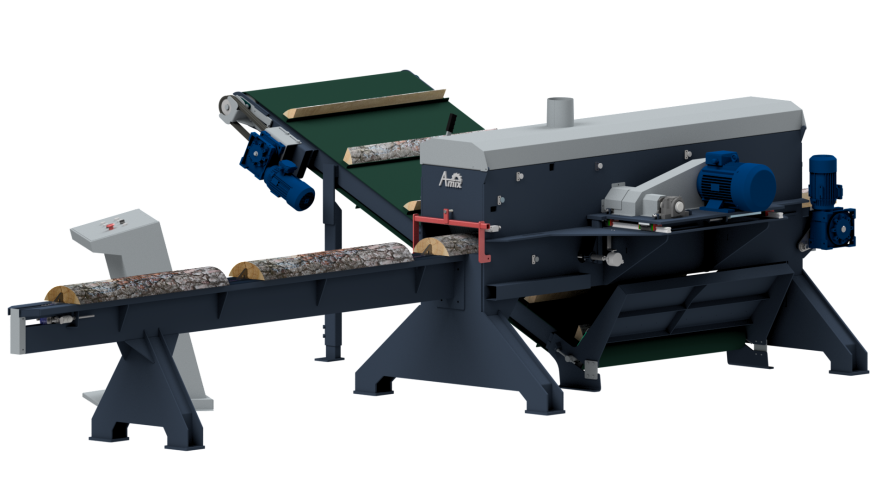

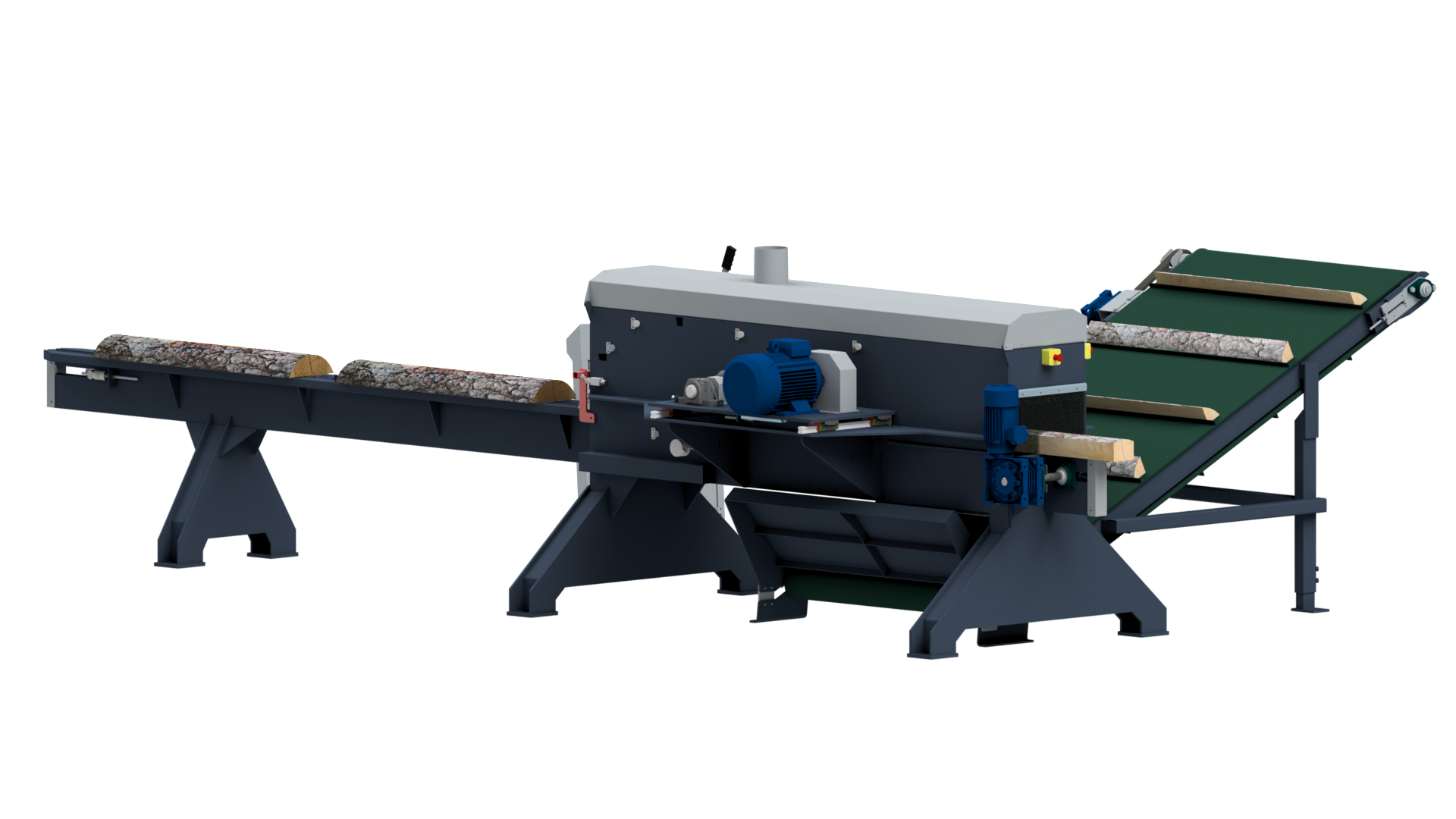

OF-200
Product description
The OF-200 type of felling machine is designed for double-sided felling of felling wood using circular saws with electronically adjustable cutting head spacing.
Overall dimensions
| Overall length | 6393 mm |
| Overall width | 3416 mm |
| Overall height | 2135 mm |
| Overall weight | 2243 kg |
Parametry użytkowe
| Diameter of circular saws | 450x50 mm |
| Permissible number of saws on spidles | 2 x 1 szt. |
| Permissible height of the flanks | max 140 mm |
| Permissible width of the flanks | max 440 mm |
| Permissible length of the flanks | max 1350 mm |
| Adjustment range for saw blade spacing | 70÷210 mm |
| Circular saw spindle sppeds | 2450 obr./min |
| Power of circular saw drive motors | 2 x 8,1 kW |
| Feed rate (infinitely adjustable) | 4,5÷18 m/min |
