Produkt

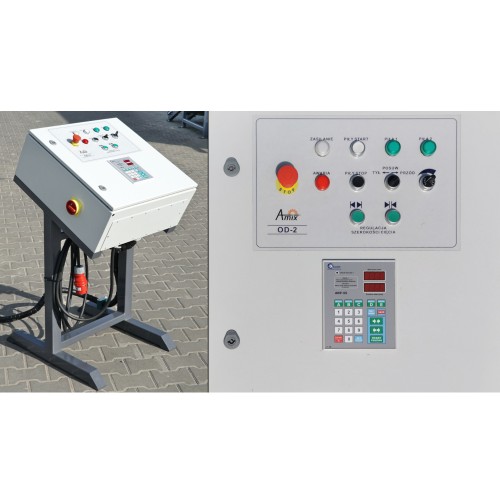

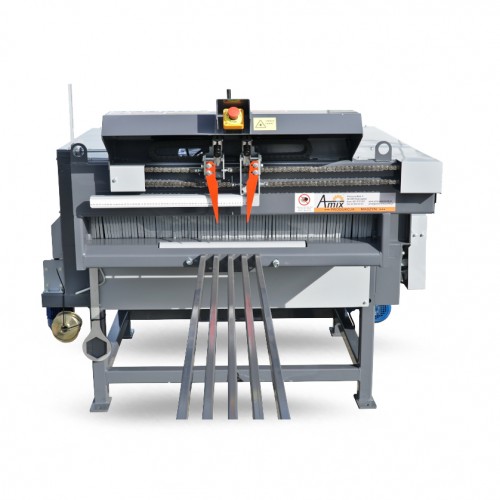

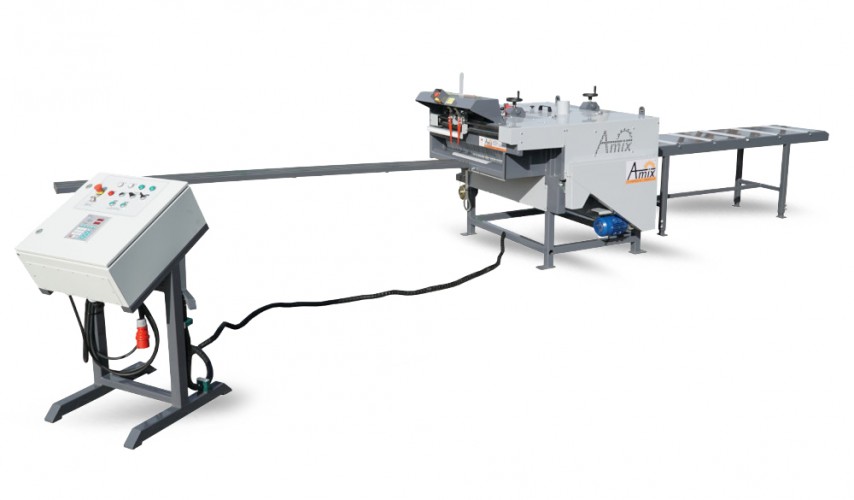

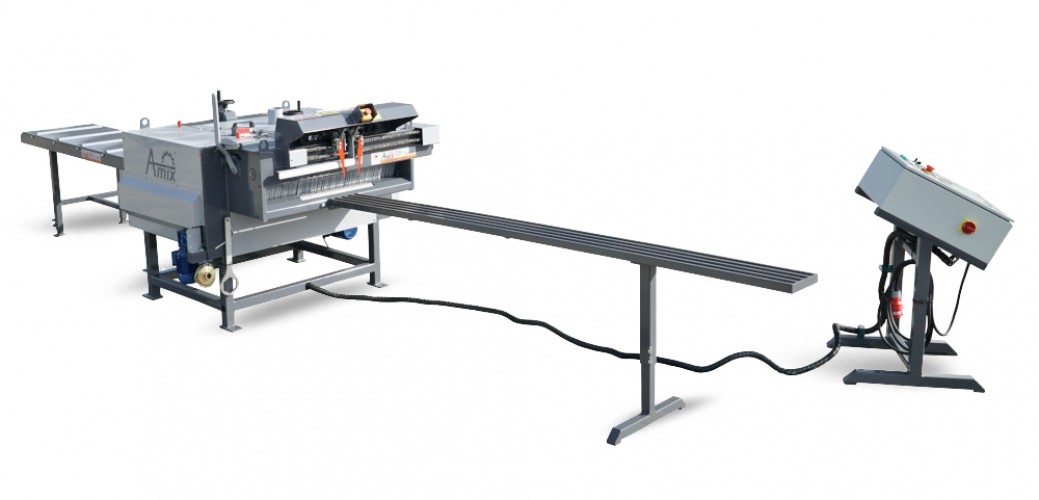

Edging machine OD-2

Product description

Edger board OD-2 is a machine designed for cutting (sawing) boards, prisms. It is used in carpentry workshops, furniture industry.

Characteristic quantities:

height of the processed prismmax. 70 mm
the width of the processed prism fromfrom 90 to 500 mm
length of the processed prism800-5000 mm
main engine power2x5.2 kW
supply voltage3x400 V
feed regulationsmooth

Overall dimensions of the machine:

length6828 mm
width1635 mm
height1722 mm
machine weight810 kg
height of working tablest810 mm
efficiency of the machine (finished raw material)2-4 m3

Addidtional equipment:

  • cutting width controller ANP 05
  • lasers
