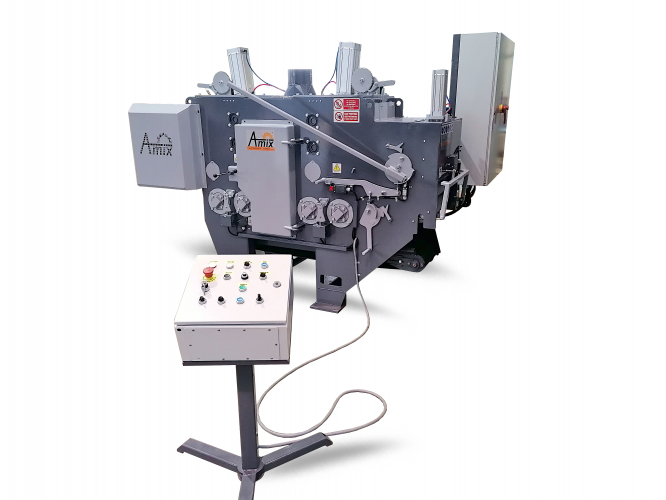

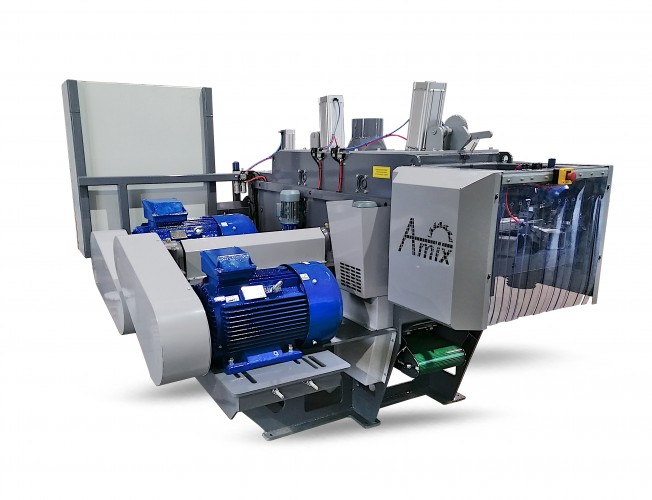

Multi saw WP-500

Product description

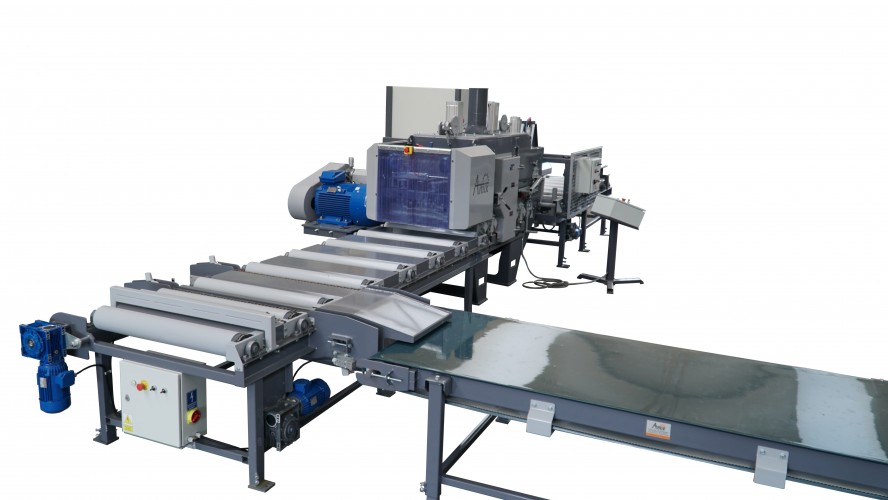

WP-500 is used for cutting boards and slats from prisms. It can work as an independent machine or be part of a wood processing line. As a result, the machine is widely used in many lumber mills.



Characteristic sizes:

WP-500 160|230

weight3900kg
height1960mm
width2200 mm
length2860 mm



WP-500 620|760

weight4500KG
height2070mm
width2410 mm
length2980 mm



Operating Parameters:

Height of the processed prism

160|230mm

Input chamber width

620|760mm

Length of the processed prism

1200-5000mm

Main motor power

55+45kW | 75+55kW

Supply voltage

3x400V

Feed rate adjustment

0-20 m/min

Productivity of the machine

5-10 m/godz.



Cutting saw parameters:

WP-500 160/640FI300x70x3.6/2.2(14HM+14)Z+4
WP-500 230/760FI375x70x4.0/2.8(14HM)Z+4
