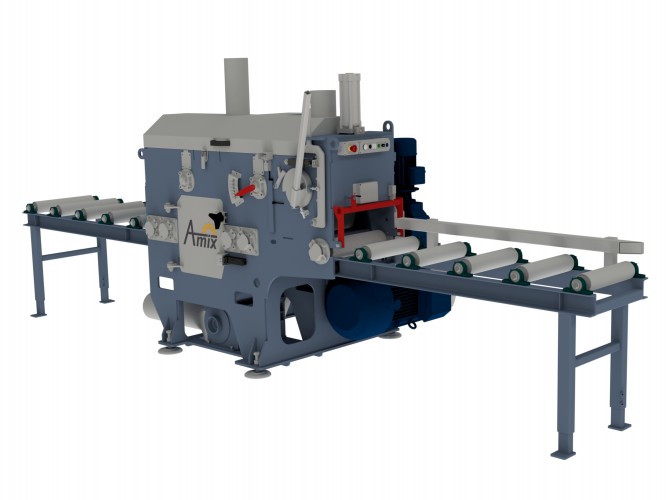

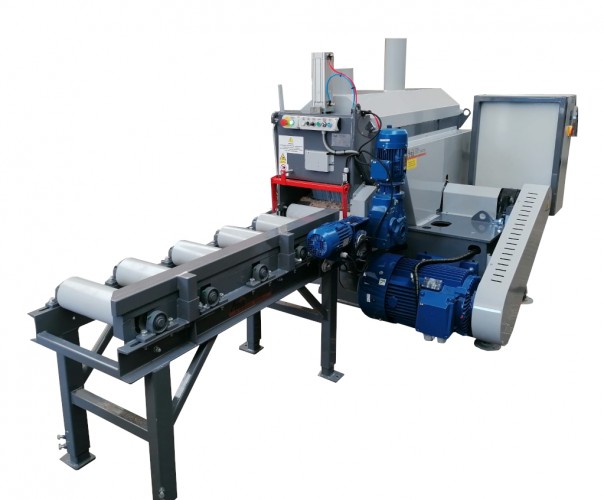

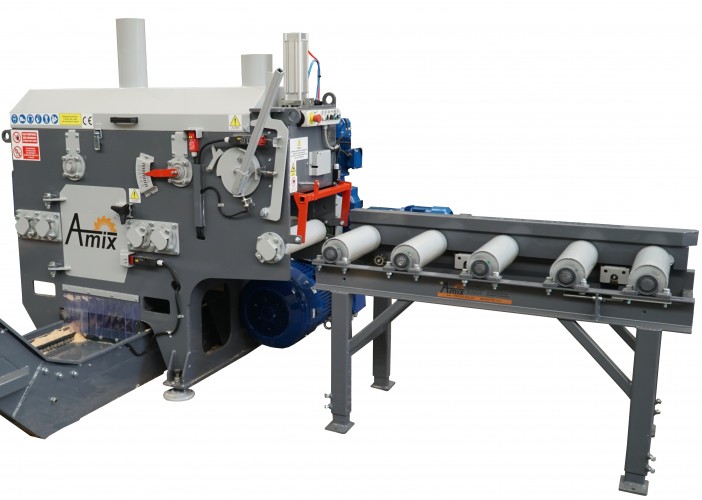

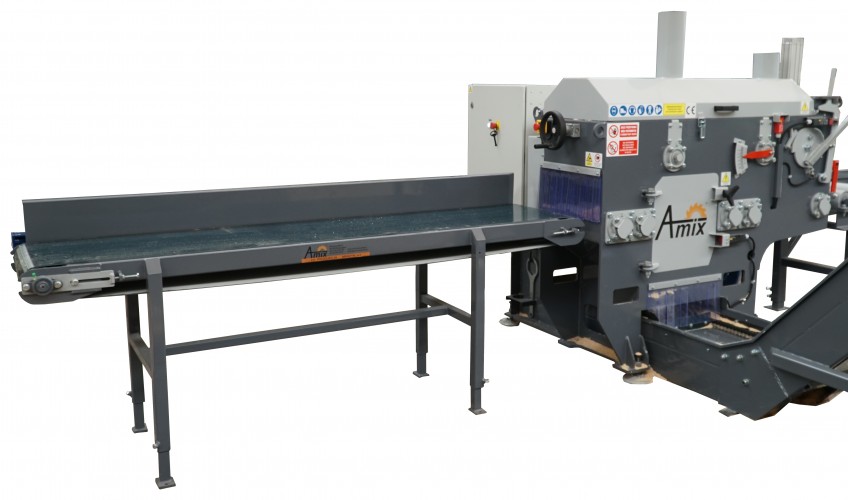

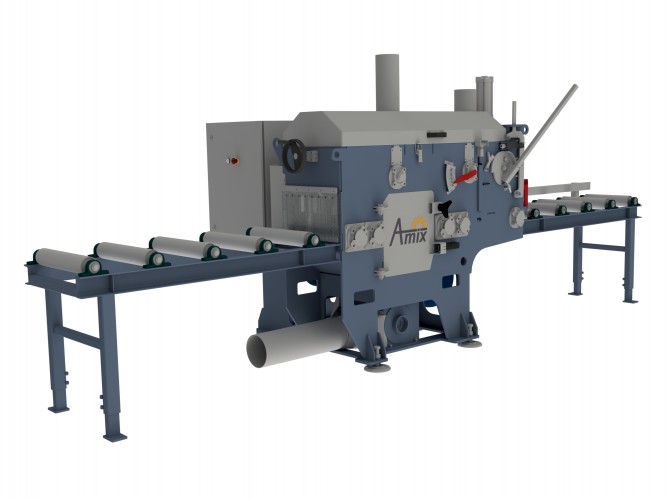

Multi saw WP-400
Product description
WP-400 is used for cutting boards and slats from prisms. It can work as an independent machine or be part of a wood processing line.
WP-400 150/480
| Weight | 2032kg |
| Height | 1890mm |
| Width | 1655mm |
| Length | 2090mm |
WP-400 150/580
| Weight | 2182kg |
| Height | 1890mm |
| Width | 1760mm |
| Length | 2090mm |
Operating parameters:
Diameter of circular saws | 425x60 mm |
Permissible number of saws on the shaft | max 10 | max 12 szt. |
Permissible thickness of cutting prisms | 50x150 mm |
Permissible width of prism cutting max | max 450 | max 550 mm |
Permissible length of prism cutting | 800-3000 mm |
Saw spindle speed | 2450 obr./min |
Spindle drive motor power | 18,5-45 kW |
Feed speed (continuously adjustable) | 3-11 m/min |
