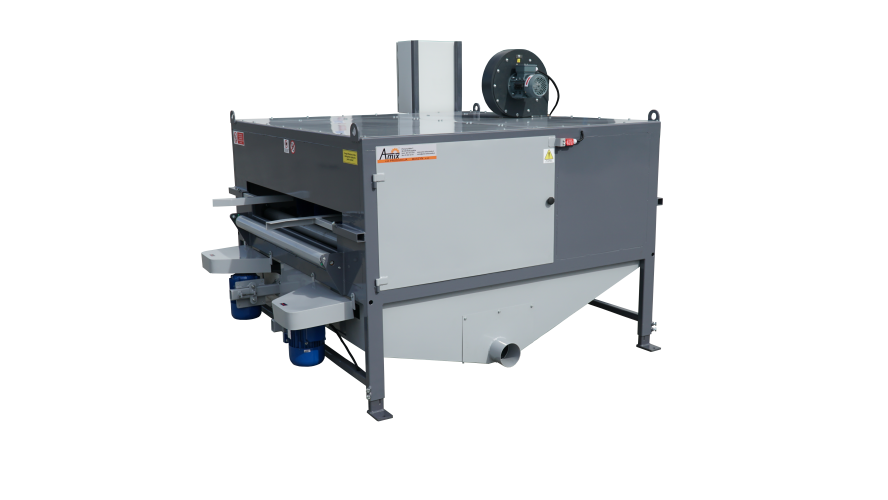

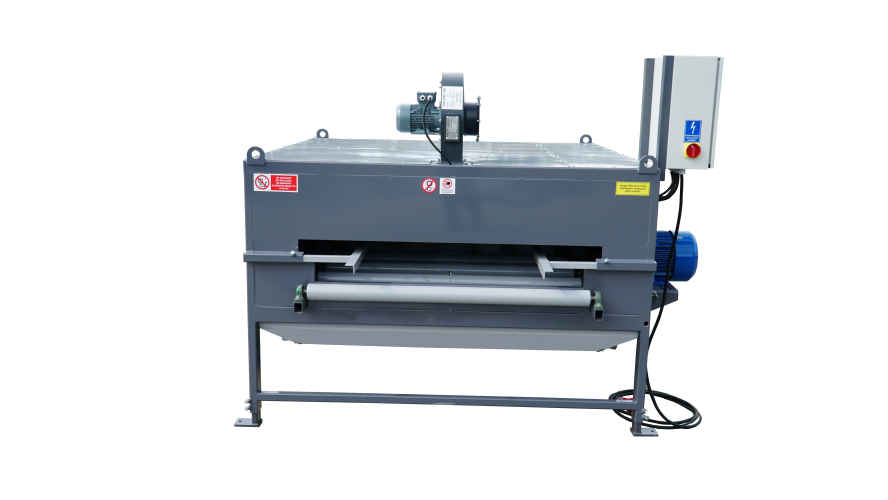

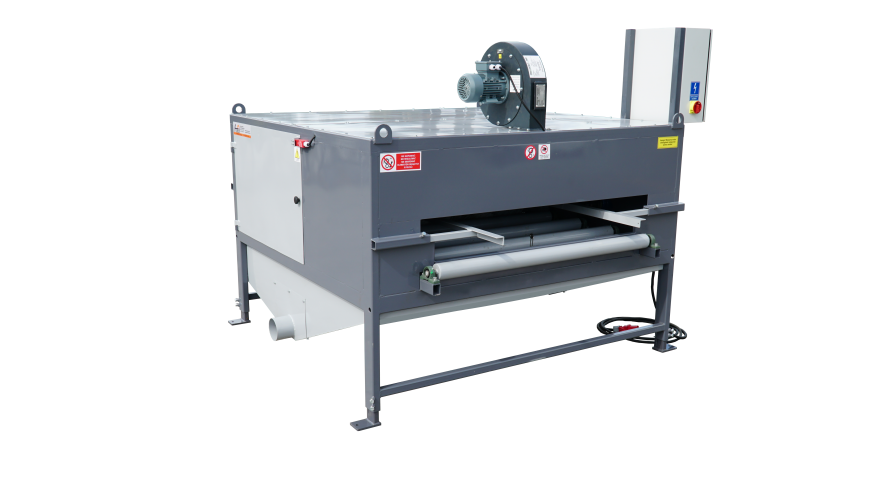

CP-100 Pallet cleaner
Product description
The machine is designed for cleaning wooden pallets from residues of sawdust formed in the production process.
The pallet is cleaned on all sides by two horizontal brushes and four vertical brushes, the remaining dust is blown with compressed air by means of nozzles distributed over the entire width of the pallet. The width of cleaned pallets is adjustable from 800 to 1200mm. The cleaner can work as an independent device but also as part of a production line.
Technical data:
| Length | 2200 mm |
| Width | 2380 mm |
| Height | 1570 mm |
| Weight | 700 kg |
| Horizontal brush motor drive power | 7.5 kW |
| Power of the 2 x 1.5 kW vertical brush drive motor | 2 x 1.5 kW |
| Power of the 2 x 0.55 kW pressure roller drive motor | 2 x 0.55 kW |
| Adjustment of cleaned pallets | from 800 mm x 1200 mm |
| Power supply (five-wire) | 400 V |
| Machine capacity | 300 pallets / hour |
