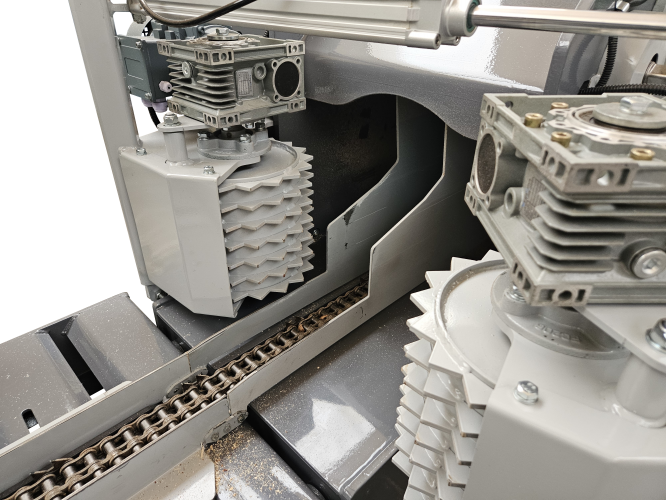

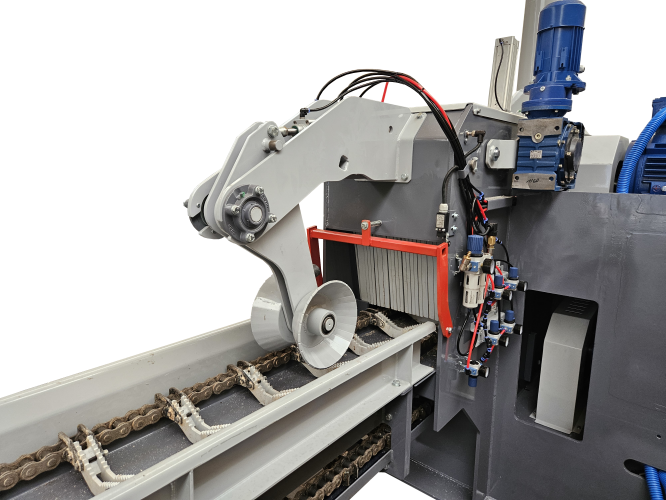

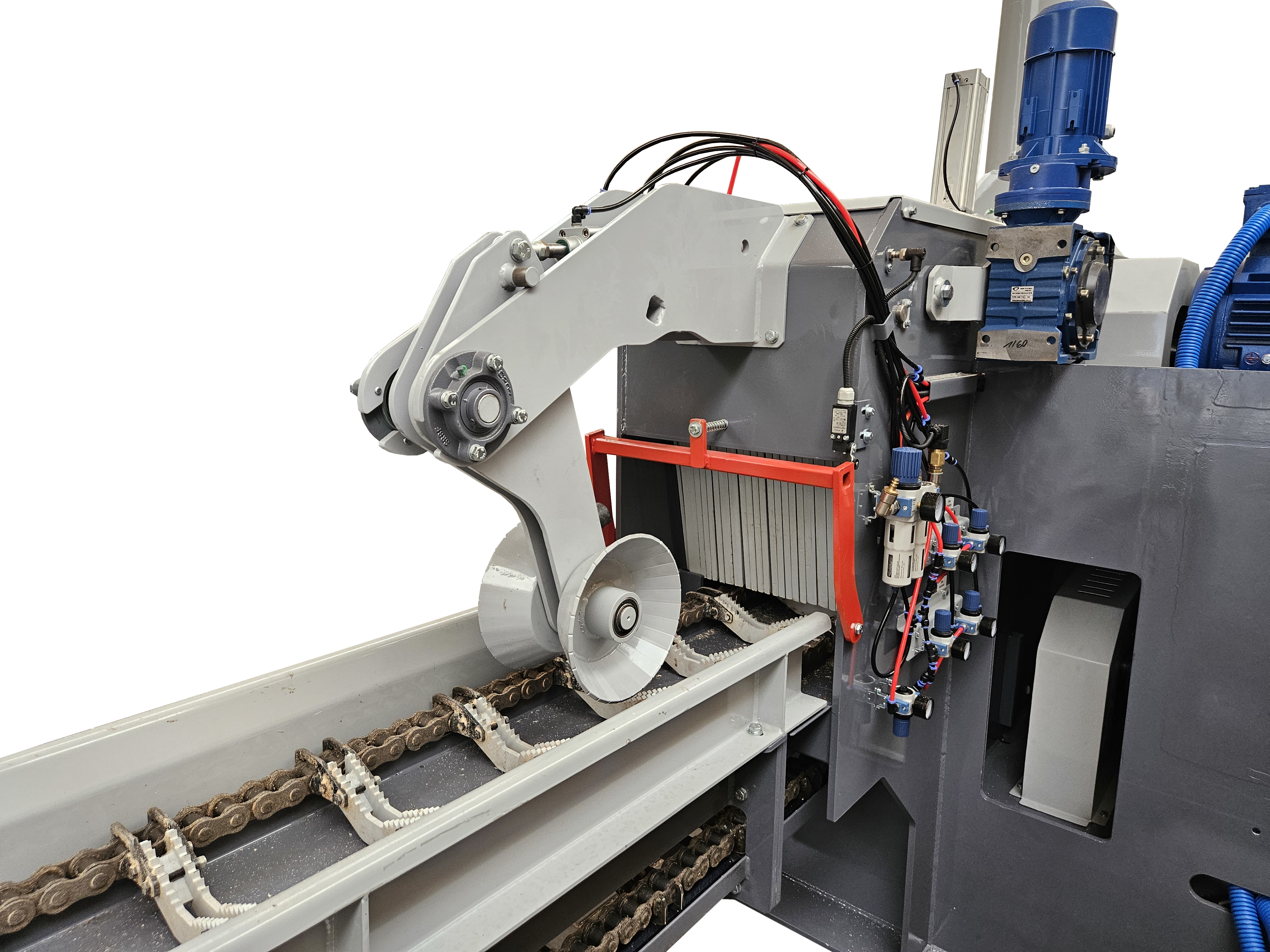

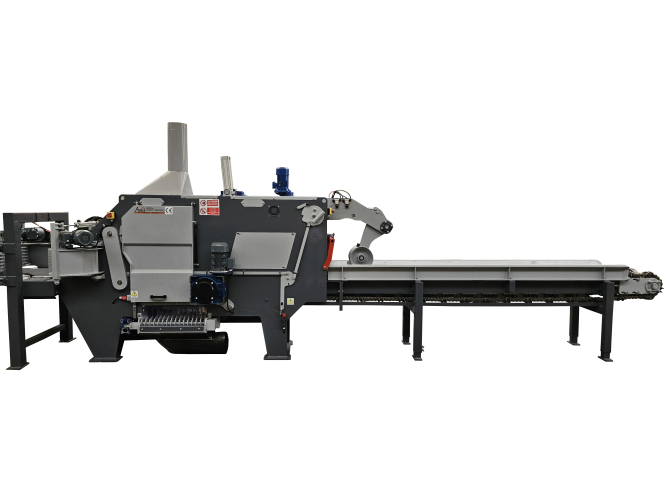

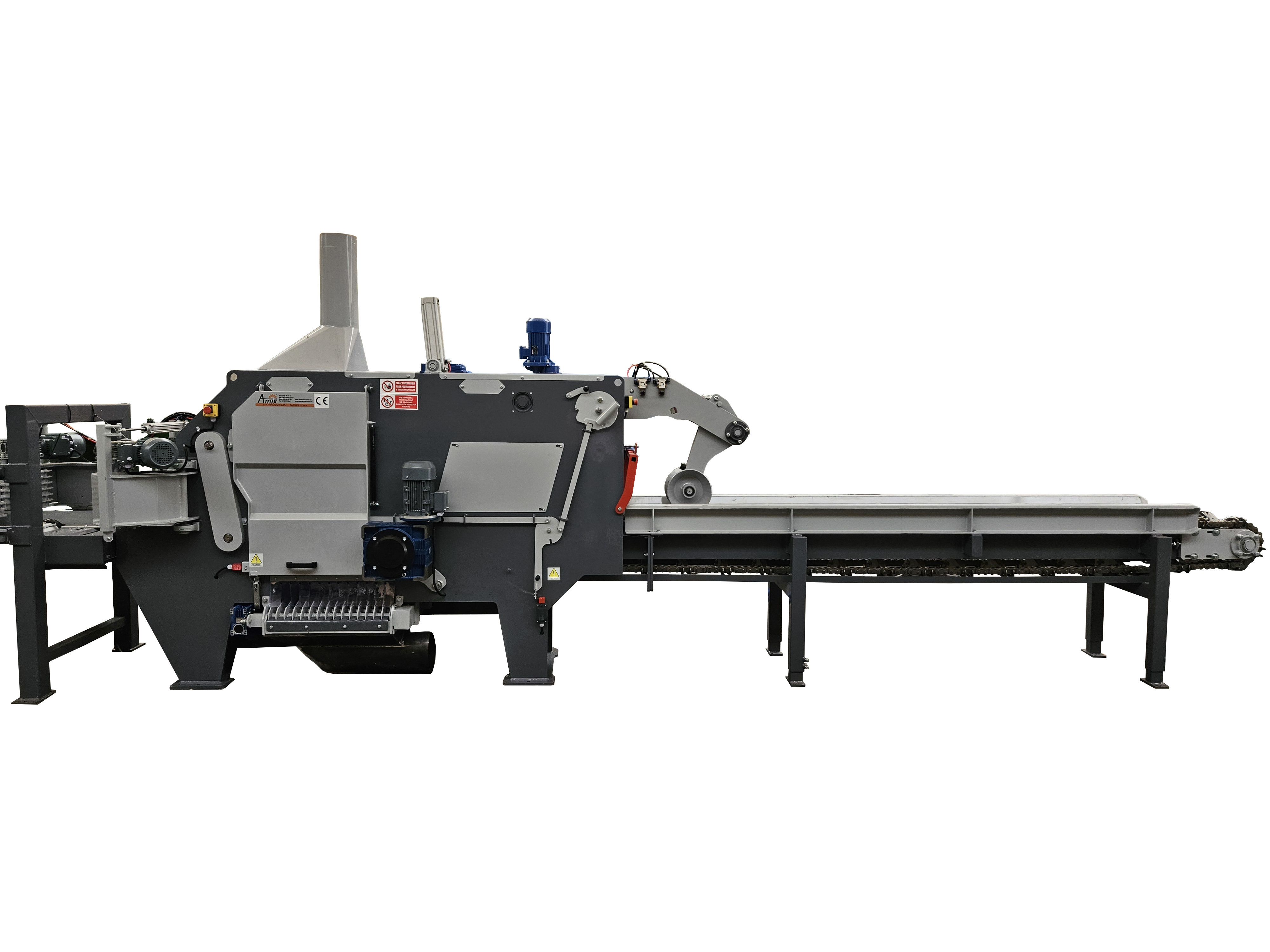

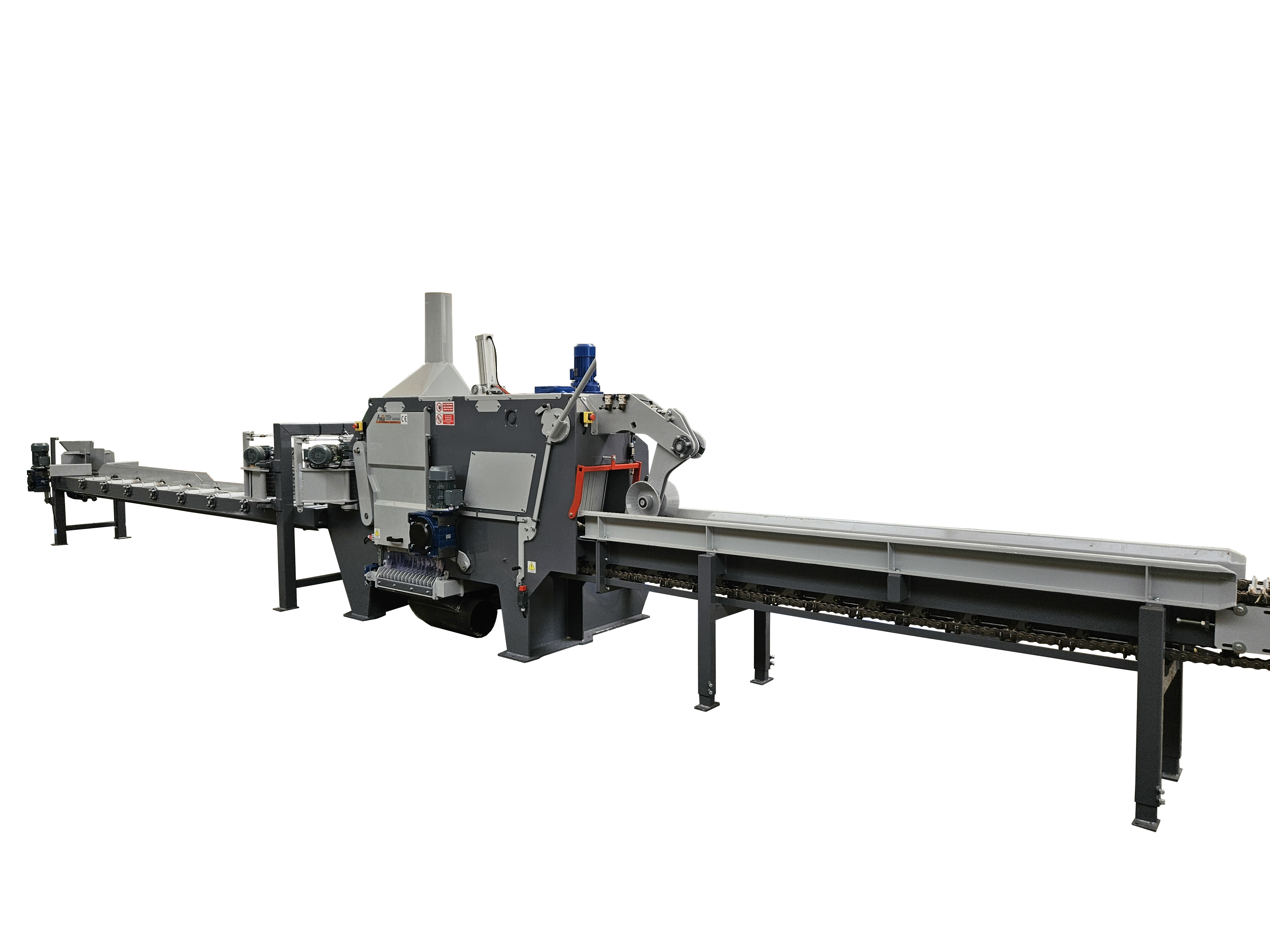

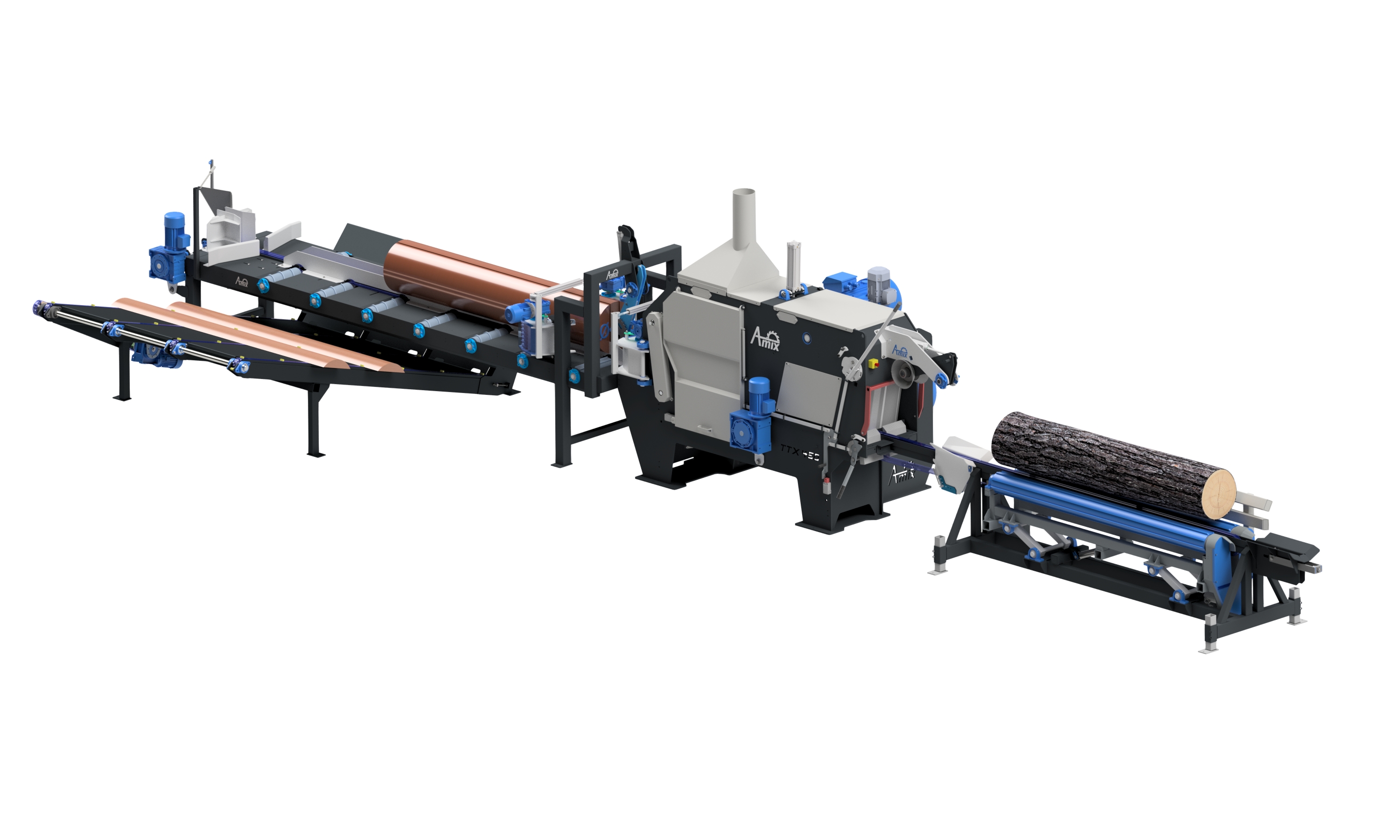

Circular Sawmill TTX-350/TTX-450
.jpg?ts=)
Product description
The double-shaft circular sawmill, type TTX-350, is designed for longitudinal sawing of timber logs with a diameter of up to 350 mm into prisms and boards of a specified thickness using circular saws.
Overall dimensions
| Overall length with POR feeder | 12447 mm |
| Overall width | 1957 mm |
| Overall height | 2455 mm |
| Overall weight with POR feeder | 4713 kg |
Operating parameters
| Diameter of saw blades | 500x70 mm |
| Permissible number of saws on each shaft | 2÷6 szt. |
| Permissible log cutting diameter | 150÷350 mm |
| Permissible log workpiece length | 2500÷4000 mm |
| Saw spindle speed | 2640 obr/min |
| Drive motor power - lower shaft | 75 kW |
| Drive motor power - upper shaft | 55 kW |
| Feeder spped (infinitelt adjustable) | 3,6÷15 m/min |
