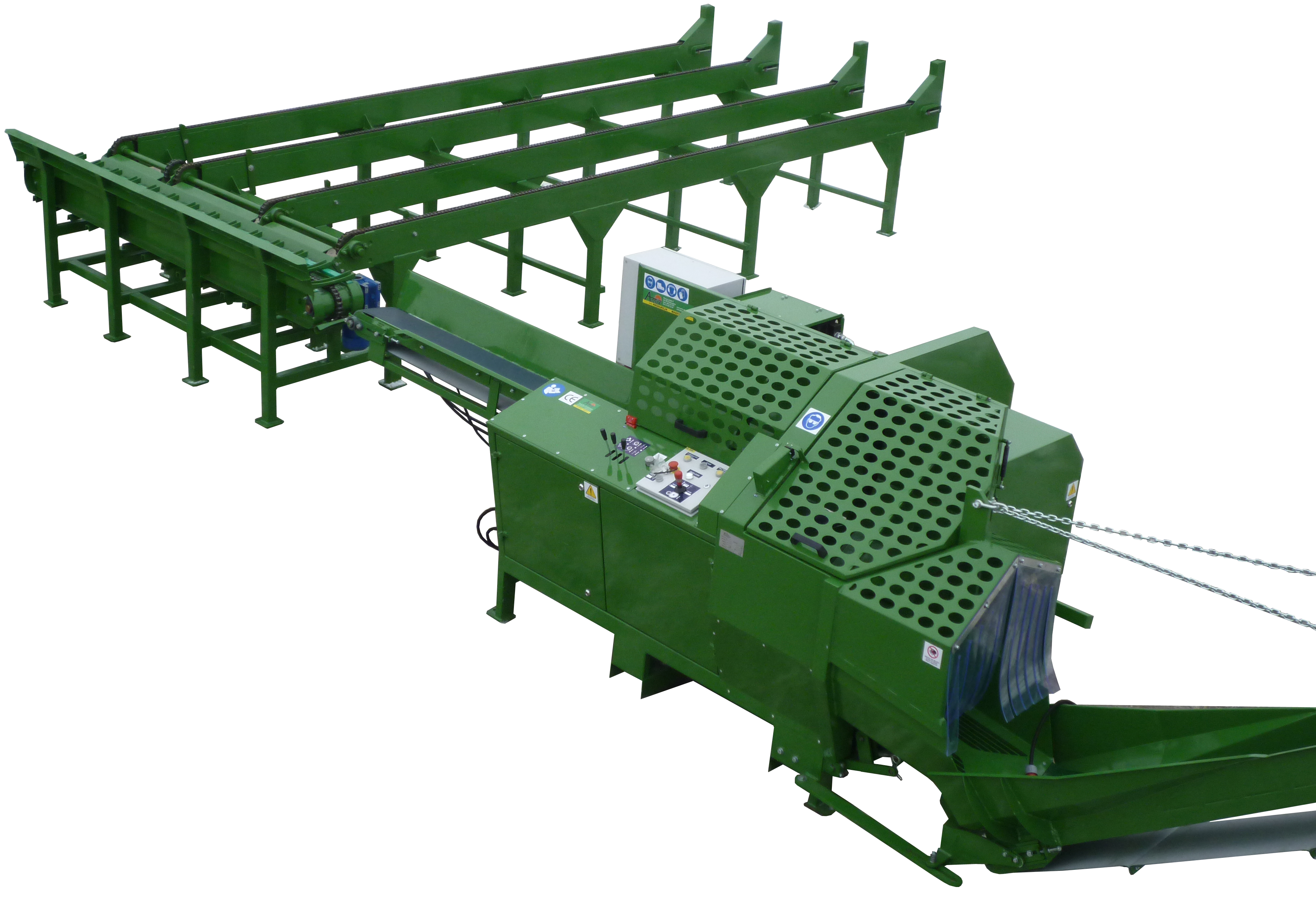

Sawing-splitter ŁP-320SP
Product description
The log splitter for firewood production cuts wood with a maximum diameter of 32 cm and splits into 2, 4, 6 or 8 parts. The cutting element of the saw is a circular saw with a diameter of 800 mm driven by an electric motor.
The splitting knife has an adjustable height depending on the thickness of the splitted wood. The machine also has an automatic pressure against the saw. Automatic retraction of the retaining plate and supporting shelf. Conveyor splitting wood 3,3m long.
Technical data:
| Length without conveyor | 425 cm |
| Length with an lowered conveyor | 750 cm |
| Length of the conveyor | 325 cm |
| Width | 170 cm |
| Height | 163 cm |
| Max. cutting diameter | 32 cm |
| Cutting length | 20-55 cm |
| Pressure max. aggregate | 180 bar |
| Pressure of splitting piston | 9 or 15 tons (option) |
| Length of the splitting cycle | 5 sec |
| Circular saw | 800x40x5,0 z=56 |
| Weight | 1350 kg |
| Power supply voltage | 400 V |
| Performance of the machine(wood of .20-30 cm diameter ) | about 20-30 m3/8 hours |
Engines:
| Electric motor of circular saw drive | 5,5 kW/1420 rpm. |
| Electric motor for driving a hydraulic aggregate | 7.5 kW/1420 rpm |
| Electric motor drive belt feeder | 0,37 kW /1420 rpm |
| Electric motor for chain conveyor drive | 0,37 kW/1420 rpm |
