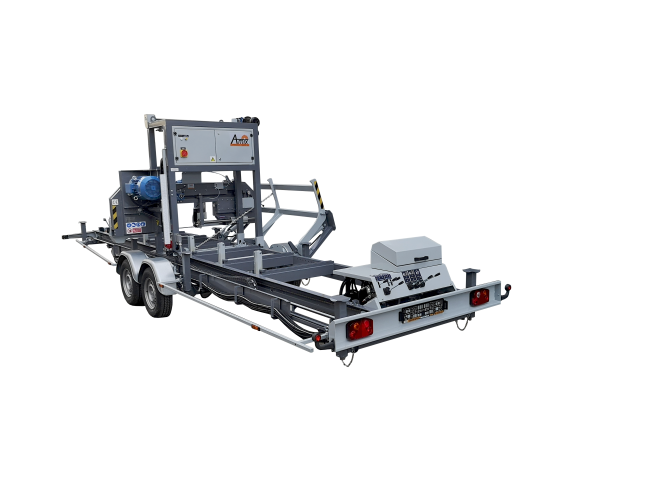

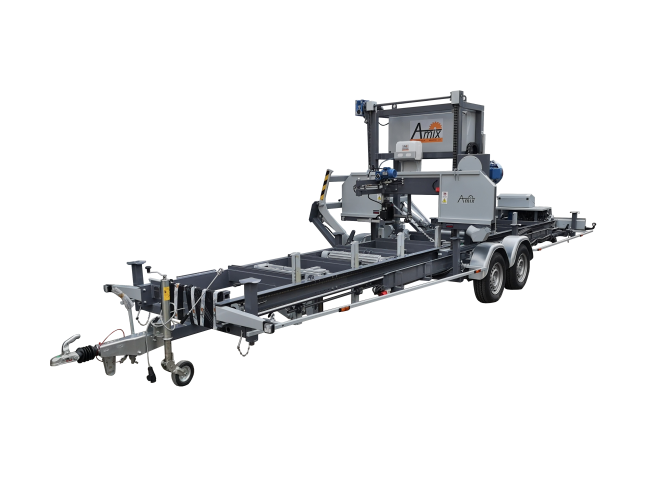

Bandsaw PT-100/P
Product description

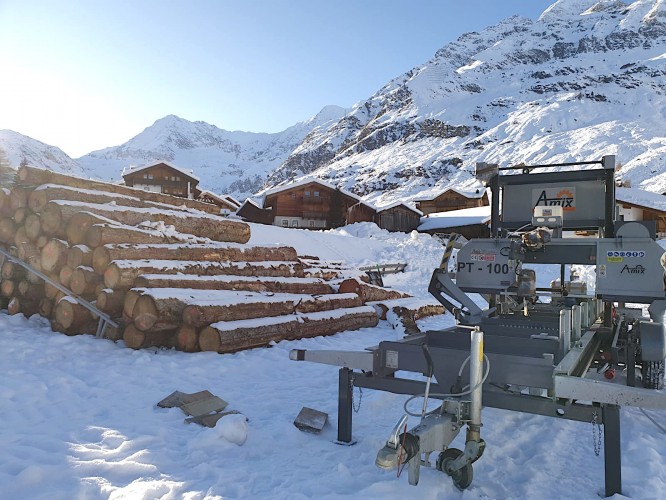

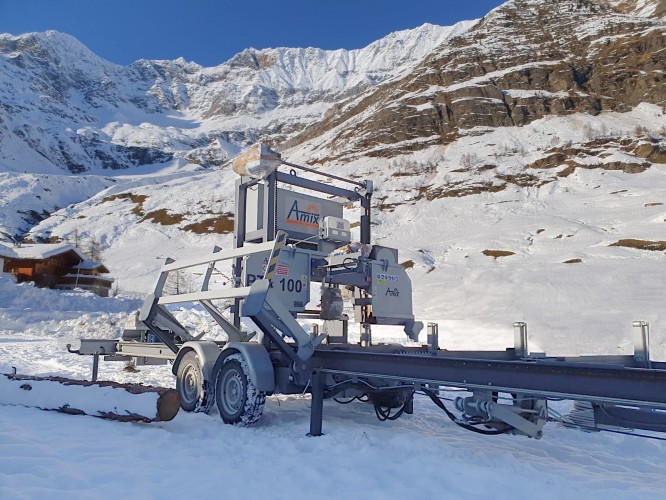

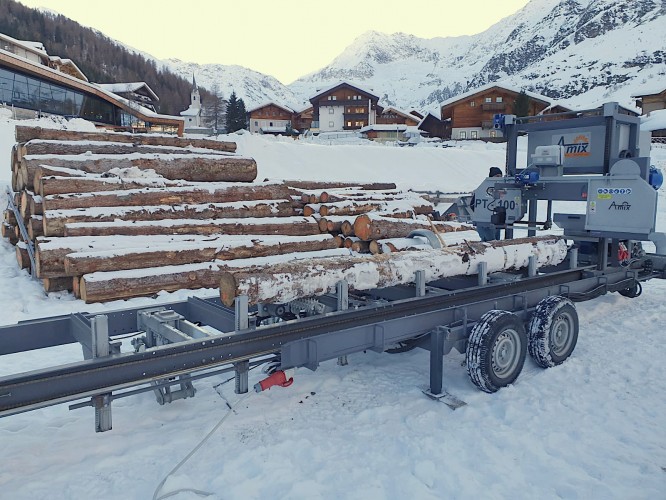

Bandsaw PT – 100/P mobile machine is used for machining (cutting) wooden logs on boards, trusses, patches, squares and other elements of building carpentry. The mobile saw allows you to process wood in any location at the plant or directly at the customer.
Characteristic quantities:
| max. diameter of logs | 1000 mm |
| max. cutting length | 6400 mm |
| main engine power | 11 kW, 15 kW, 18,5 kW |
| supply voltage | 3x400 V |
Dimensions of the saw blade:
| sawing length | 4995 mm (225 zębów) |
| the width of the saw blade | 35÷40 mm |
| pitch od the saw | 22.2 mm |
| saw thickness | 1.0-1.27 mm |
| diameter of the main pulley | 600 mm |
| feed regulation | smooth |
| lectrically operated saw blade | |
| horizontal clearance of the cutting head | 900 mm |
| vertical clearance of the cutting head | 370 mm |
Hydraulic equipment of the machine:
| pressure on logs | 1 pc |
| log rotator | 1 piece |
| loading fork | 1 pc |
| leveling roll | 2 pcs |
| retractable stop bumpers | 4 pcs |
Overall dimensions of the machine:
| length | 9064 mm |
| width | 2438 mm |
| hight | 2629 mm |
| machine weight | 2700 kg |
| machine performance (finished raw material) | 1.5-3 m3 |
Additional equipment:
- debarking cutter (debarker)
- ISP010 cutting thickness controller
- 3m long track extension
- two-way clip
- operator's seat
- additional hydraulic pressure
- additional hydraulic pressure
- chain rotary
- leveling roller with hydraulic drive
- leveling roll
