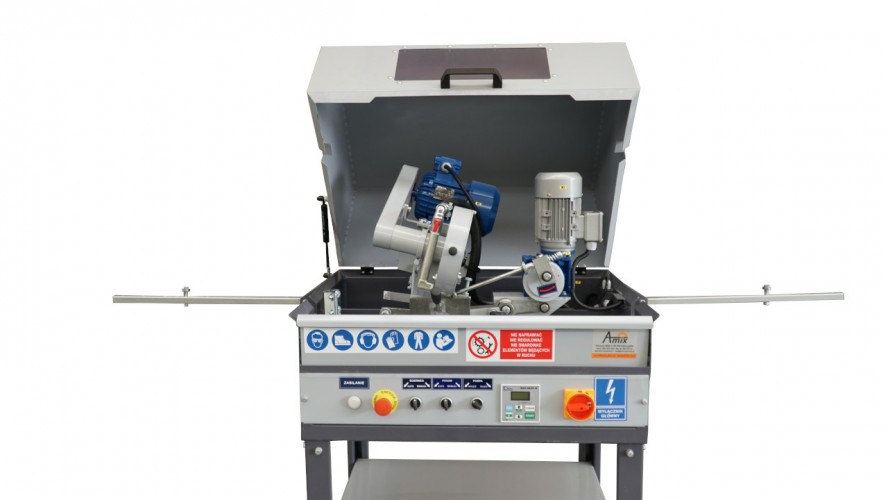

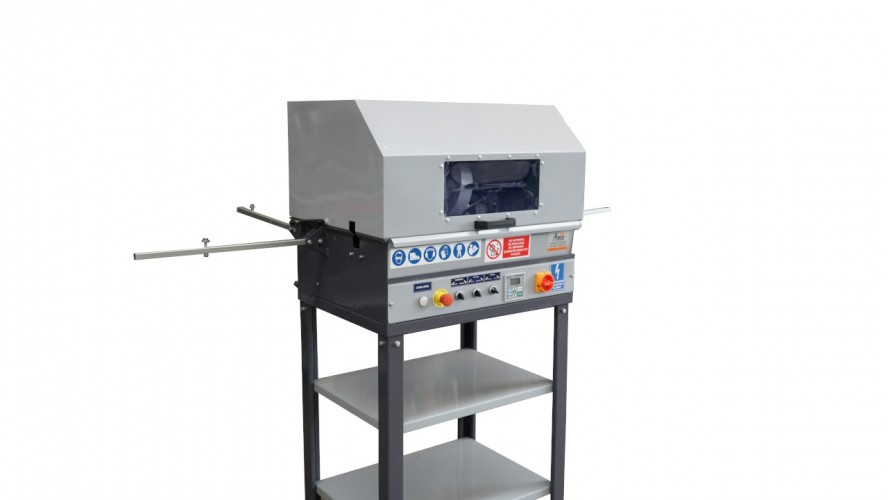

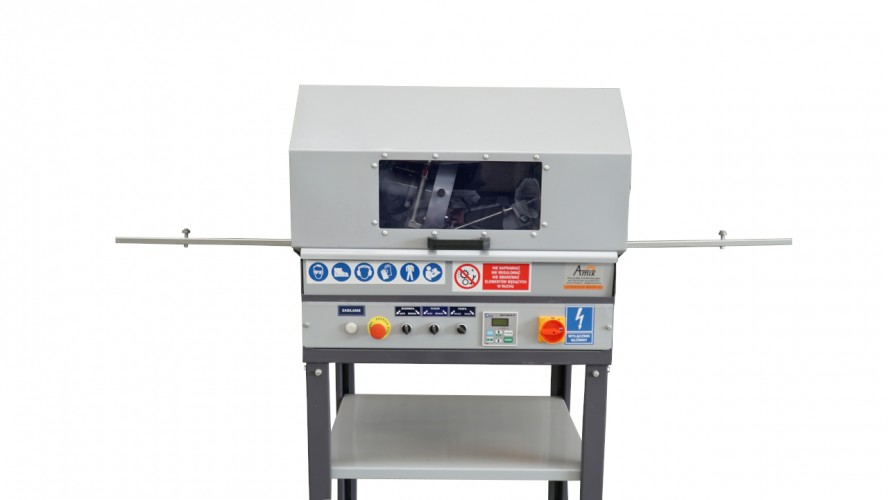

Sharpening machine for bandsaw OR- 200
Sharpening machine is used for sharpening (grinding) saws type Wood. The sharpening element is Borazon wheel (diameter 203) that does not require profiling.
When using this type of sharpening it is necessary to rinse the blade non-emulsifying oil which has the cools and cleans the sharpening element. Thanks to the controller MLC -03 with a display, you can set the number of cycles and the number of sharpened teeth. It all makes the sharpener fully automatised.
|diameter of the boron shield||ø 203 mm|
|width of sharpened blades||25-50 mm|
|pitch of saw teeth||22 mm|
|cutting speed of the saw blade||0,75 m/min.|
|installed power||0,75kW+0,12 kW|
|useful power||0,87 kW|
|control power supply||24V, 50 Hz|
|power supply (five-wired)||3x400V,50 Hz|
